Seat Fits Kubota L3010 L3410 L3710 L4310 L4610 Compact Tractors L48 Backhoe

Models This Part Fits:

1320, 1520, 1720, 1920, 2120, 2810, 3510, 4110, A All, B1550, B1700, B1702, B1750, B20, B2100, B2150, B2400, B2410, B2710, B2910, B4200, B5100, B6100, B7100, B7300, B7410, B7500, B7500 B8200 G1800 G1900 G2000, B7510, B7610, B8200, D1300, G1700, G1800, G1900, G2000, GF1800, L225, L2250, L2350, L245, L2550, L2850, L3010, L305, L3250, L3300, L3350, L3410, L345, L3450, MT210, MT2501, MT372, MT3720, MT4501, S370

Additional Information:

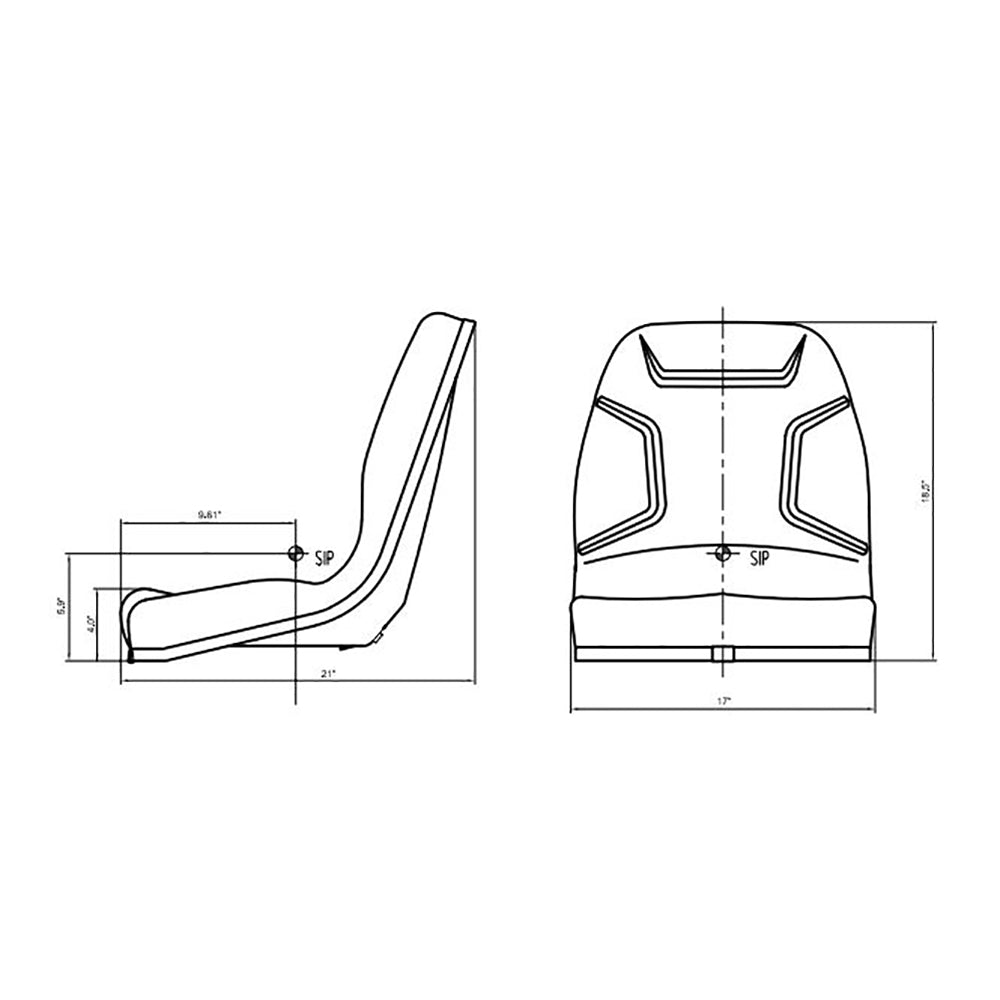

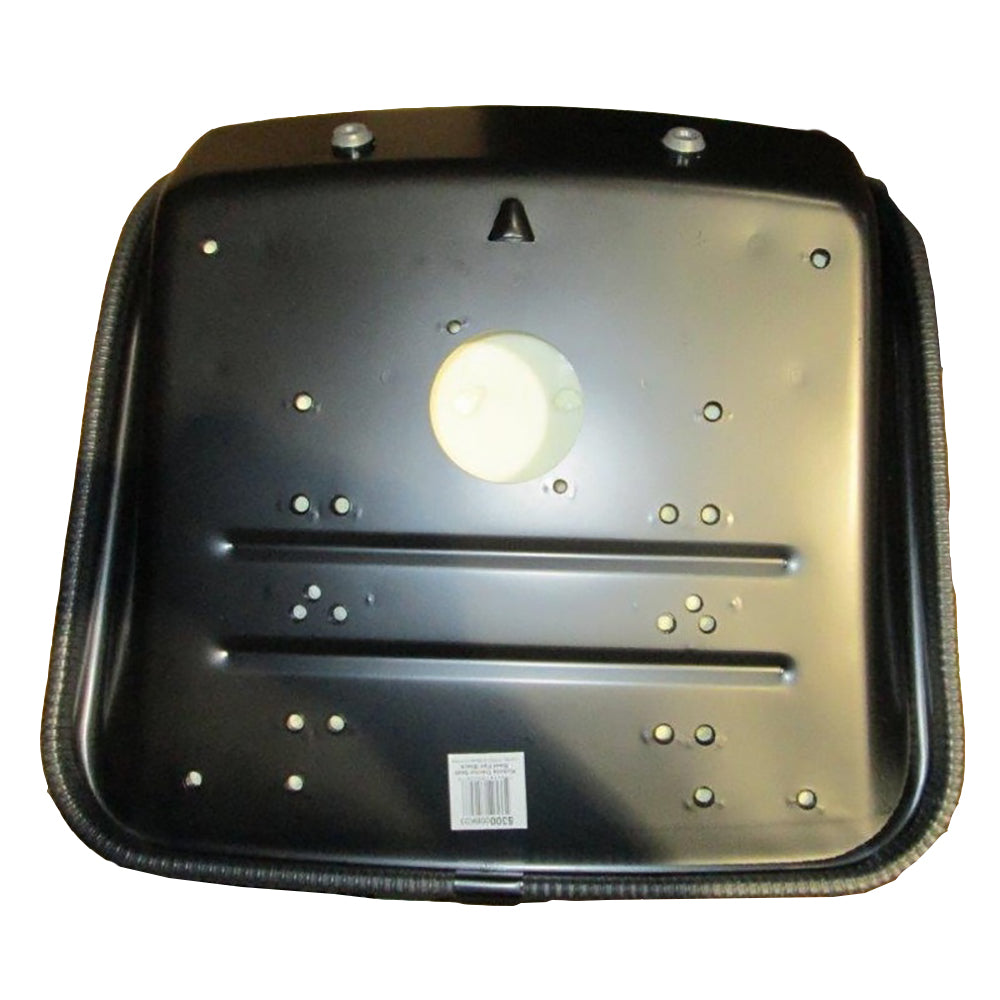

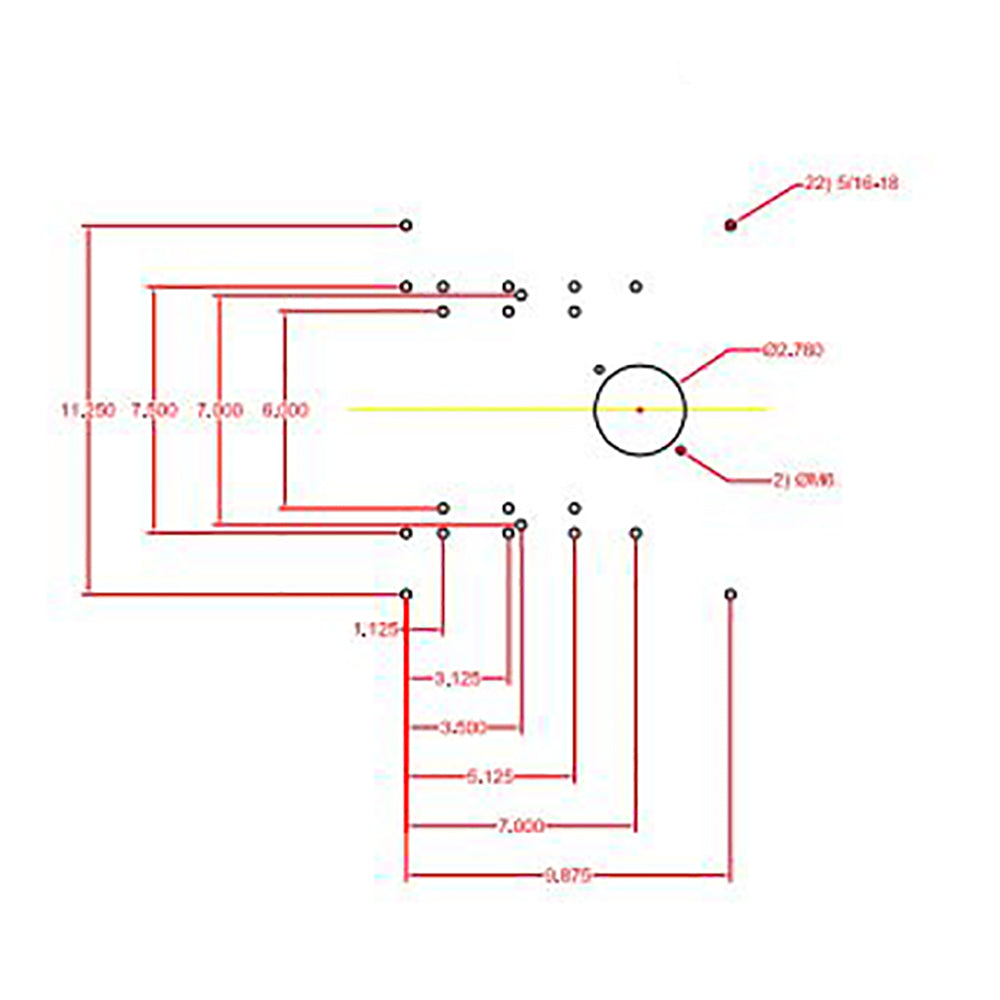

Heavy duty seat assembly, steel pan. High back Compact Seat. Has Drain holes. Black leatherette upholstery, Will accept OPS switch. Dimensions: Width: 17" Height: 18" Depth: 21.5" Bolt Patterns (width x depth): 6″x 2″ 6″x 4″ 7.5″x 1.125″ 7.5″x 1.125″ 7.5″x 2″ 7.5″x 3.125″ 7.5″x 3.875″ 7.5″x 4″ 7.5″x 5.125″ 7.5″x 5.875″ 7.5″x 7″ 11.25″x 9.875″

Reference Numbers:

34159-18400, 34159-18400-A, 3415918400, 35110-85010, 35110-85010-A, 469-530000BK, 469-S5301, 530000BK, 530000BK-SGL, B2410, B2710, B2910, B4200, B5100, B6100, B7100, B7300, B7500, B8200, B9200, L175, L185, L200, L2050, L210, L225, L2250, L235, L2350, L2350-A, L245, L2500, L2550, L260, L2600, L2650, L275, L2800, L285, L2850, L2900, L295, L2950, L3000, L305, L3250, L3300, L3350, L3400, L3410, L345, L3450, L355, L3600, L3650, L3710, L3750, L4150, L4200, L4300, L4350, L4400, L4610, L4850, L5450, M4000, M4050, M4500, M4900, M5500, M7500, MX5000
