New Tractor Steering Kit Fits John Deere L110 L120 L130 G110

$99.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Steering Repair Kit

Fits John Deere Models: L110, L120, L130, G110

Kit Contains:
(1) Left Hand Adjustable Draglink

Replaces Part Number: GY20491

(1) Right Hand Adjustable Draglink

Replaces Part Number: GY20492

(1) Pinion Gear

Replaces Part Number: GX20053

(1) Sector Gear

Replaces Part Number: GX20052

(1) Steering Gear Bushing

Replaces Part Number: GX20054

(1) Steering Bolt
Specifications:
Hex Flange Bolt
Thread Size: 10mm
Length: 35mm
Thread Pitch: 1.25mm

Replaces Part Number: 19M7835

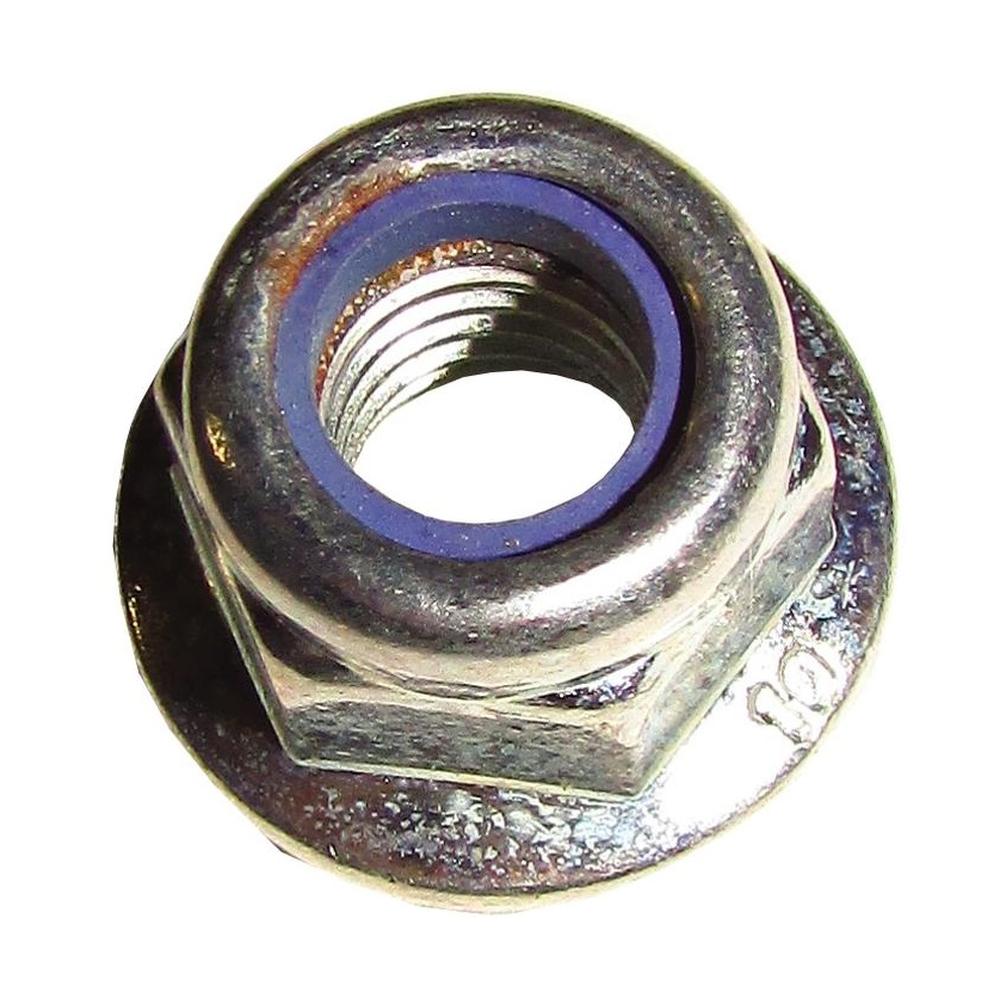

(1) Lock Nut
Specifications:
10mm Nylon locking nut
Hex Flanged Nut

Replaces Part Number: 14M7400

(1) Flat Washer
Specifications:
ID: .781"
OD: 1.25"
Thickness: .036"
Material: Steel

Replaces Part Number: 24H1856

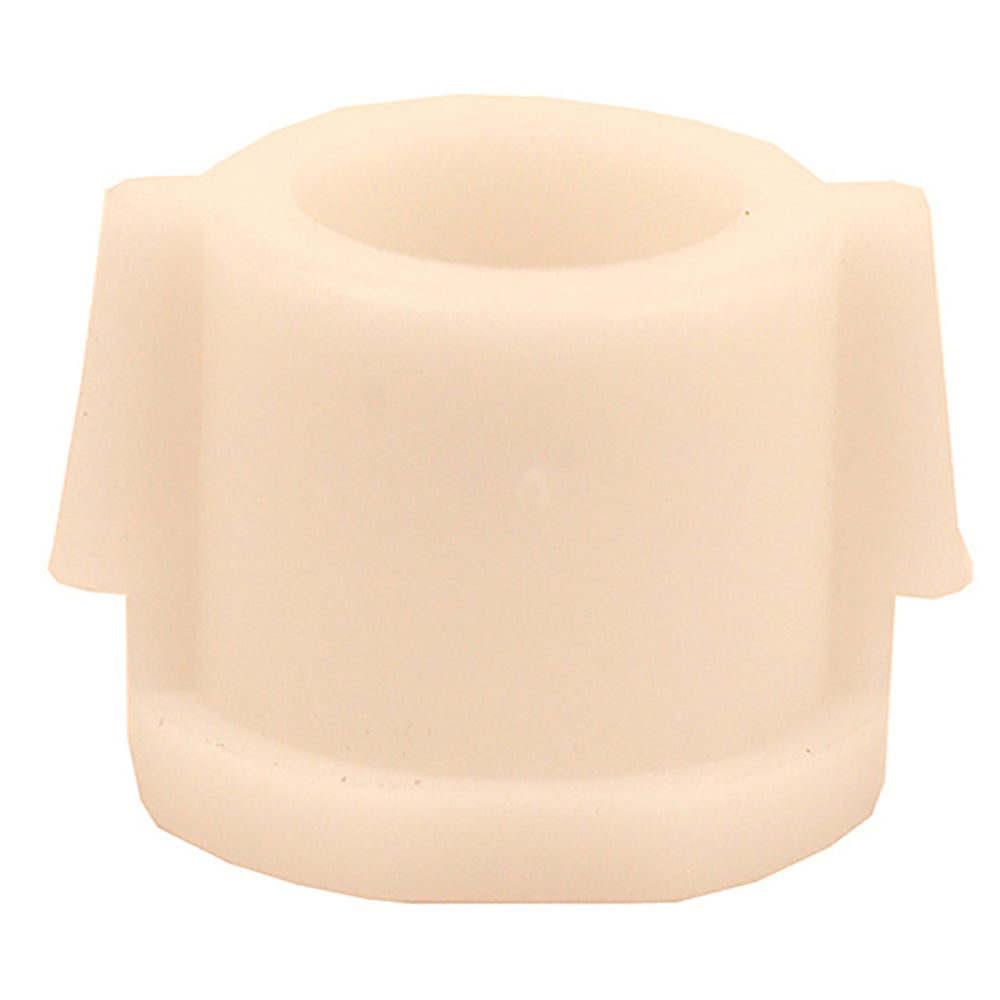

(1) Steering Shaft Bushing
Specifications:
ID: .625"
OD: .900"
Height: .870"
Flange OD: 1"

Replaces Part Number: GX21994

(1) Lock Nut
Specifications:
8mm Nylon Lock Nut
Hex Flanged Nut

Replaces Part Number: 14M7396

(1) Lock Nut
Specifications:
10mm x 1.25mm Pitch

Replaces Part Number: 14M7455

(1) Shoulder Bolt
8mm Threads

Replaces Part Number: M153513

Models This Part Fits:

102, 105, 115, 125, 135, 145, 155C, 190C, LA135, LA140, LA145, LA150, LA165, LA175

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400
