42" Deck Rebuild Kit Fits Murray Lawn Mower Spindle Blades Belt Pulleys Adapters

$142.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

New Aftermarket Replacement Deck Rebuild Kit Fits 42" Decks

Fits Murray Riders Year 2000+

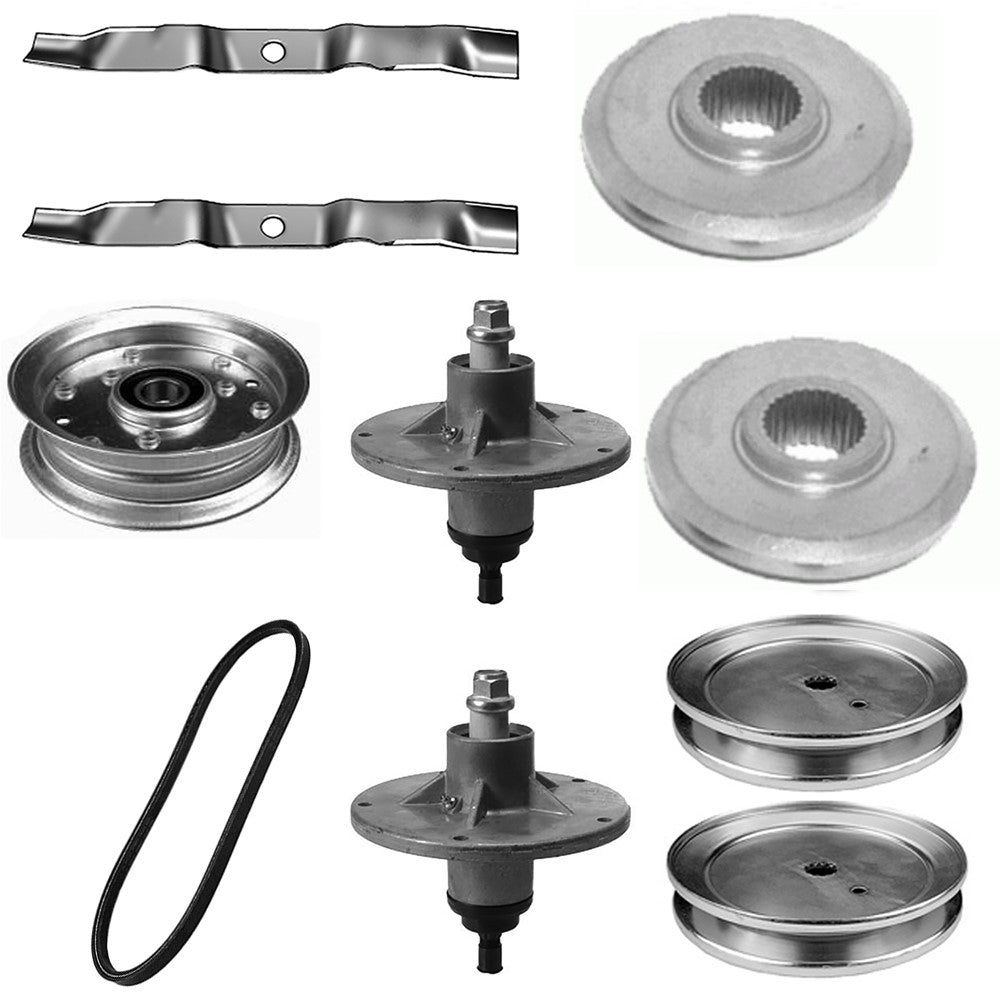

Kit Contains:

(2) Blades:
Length: 21-3/16"
Width: 2-1/4"
Thickness: .134"
Center Hole: .85"

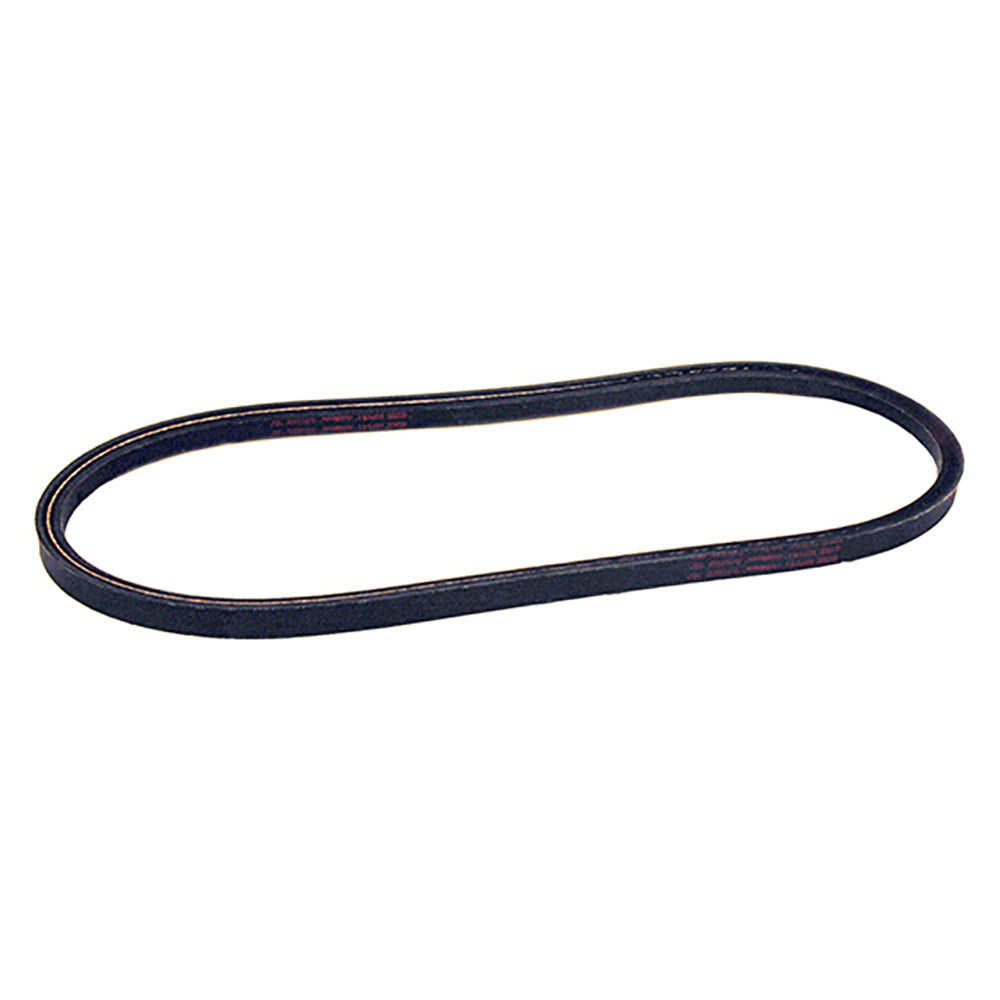

(1) Belt:
Length: 89-1/2"
Width: 1/2"

(2) Jackshaft Pulleys:
OD: 5-3/8"
ID: 9/16" Splined
Pulley Groove Width: 1/2"

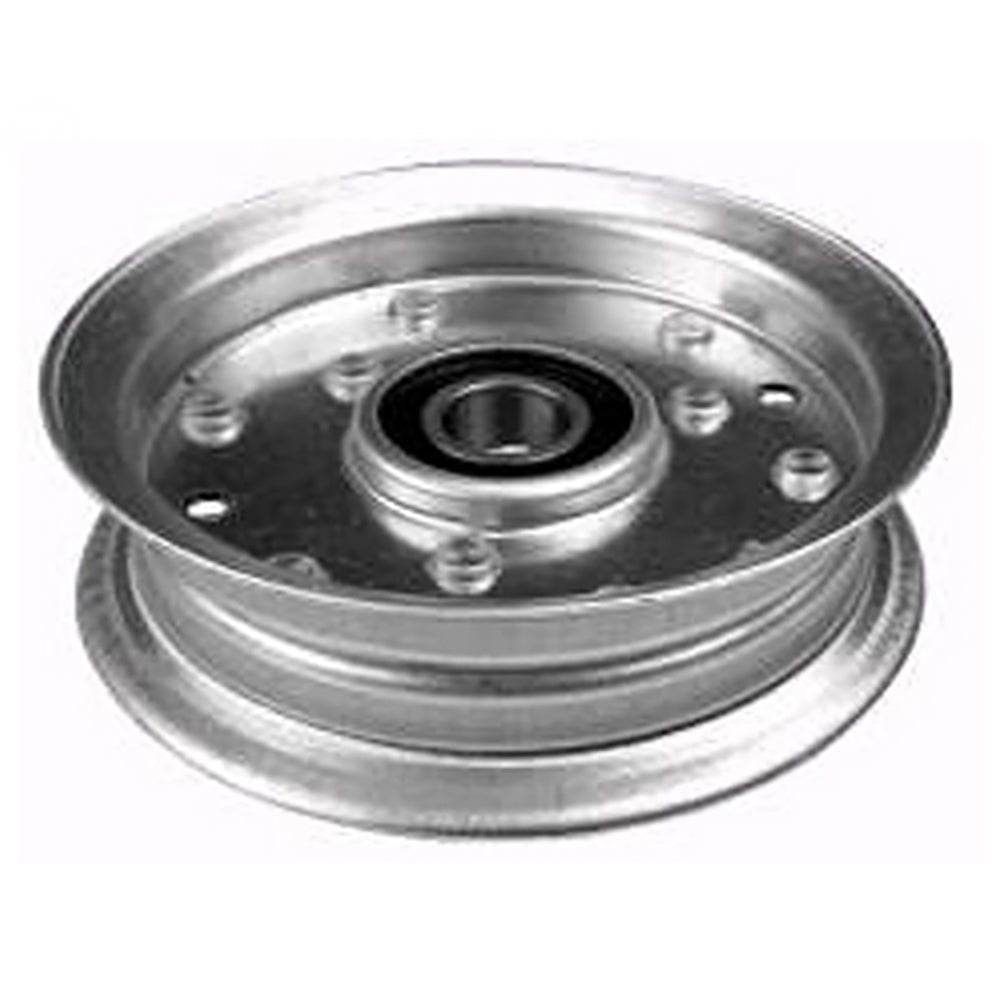

(1) Flat Idler Pulley:
OD: 4-11/16"
ID: 11/16"
Width: 1-3/8"

(2) Adaptors:
OD: 1-15/16"
Center Hole: .600"

Replaces Part Numbers
Spindle Assemblies replace 10001709MA, 1001200
Blades replace 095100E701, 095100E701A, 95100, 95100E701A
Belt replaces 37X88
Jackshaft Pulleys replace 494199
Flat Idler Pulley replaces 690387
Adaptors replace 690411

Additional Information:

(2) Spindle Assembly w/ Shaft Tech Info: OD 6-7/8" HEIGHT 7-1/4" 9/16"-18 UNF thread at each end of shaft Includes housing, shaft, bearings, grease fitting and dust cover over one bearing Replaces Part Numbers: 1001200, 10001709MA, 1001200MA (2) 3 in 1 Mower Blade Tech Info: Length: 21-3/16" Width: 2-1/4" Thickness: .134" Center Hole: .85" Replaces Part Number: 092545E701MA, 095100E701MA (1) Deck Belt Tech Info: 1/2" x 89.38" Thickness: 0.468" Wrapped Polyester Cord Replaces Part Numbers: 037X88, 037X88MA, 37X88, 37X88MA, 710213 (2) Jackshaft Pulley Tech Info: OD: 5-3/8" ID: 9/16" Splined Pulley Groove Width: 1/2" Replaces Part Number: 23347, 37X18 (1) Flat Idler Pulley Tech Info: OD: 4-11/16" ID: 11/16" Width: 1-3/8" Replaces Part Numbers: 754-0146, 754-0252, 754-262 (2) Splined Blade Adaptor Tech Info: Length 2-5/32" C. H. DIA 0.6000" Top ID 7/8" Diameter 1-15/16" Contains Only the Splined Adapter, not the washers or nuts Replaces Part Numbers: 690411
