129963 Spindle Assembly w/ Hardware Fits AYP 48" Decks built after 2001

$42.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Aftermarket Spindle Assembly w/ Hardware

Tech Info:

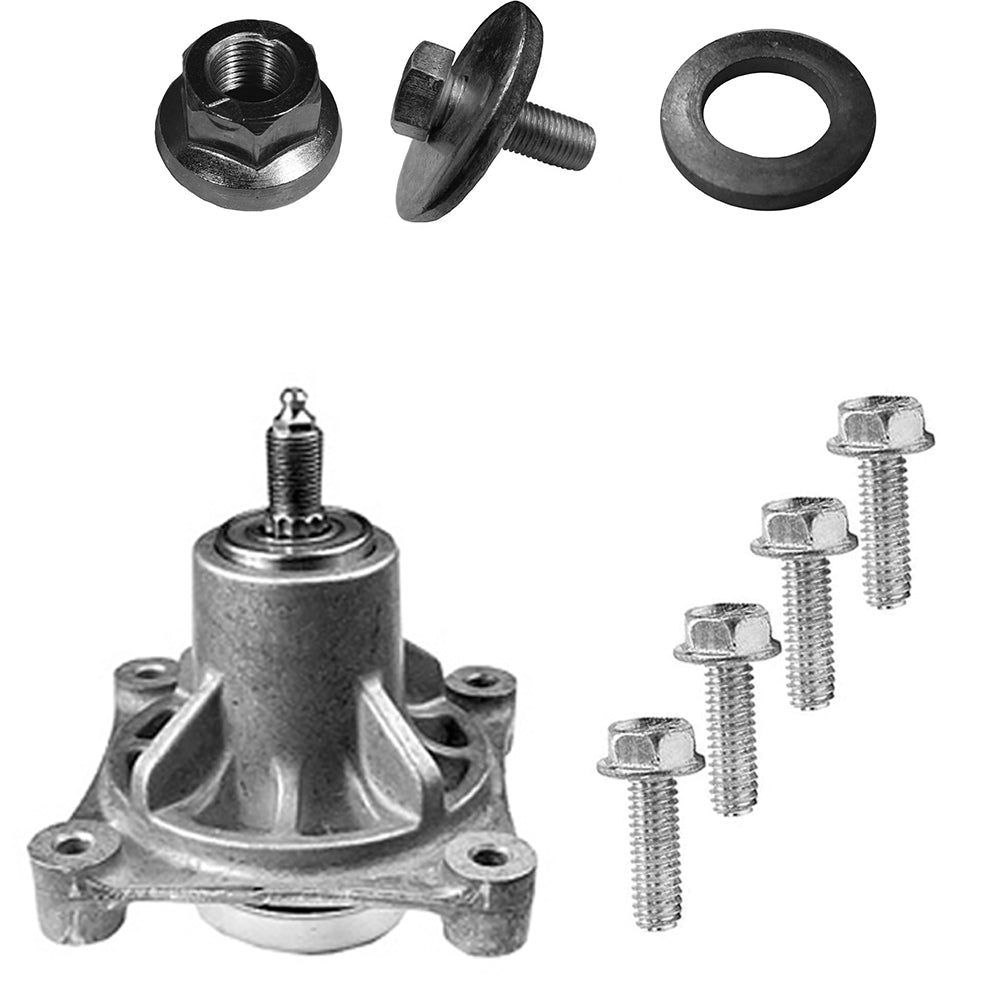

-Assembly Includes:
-

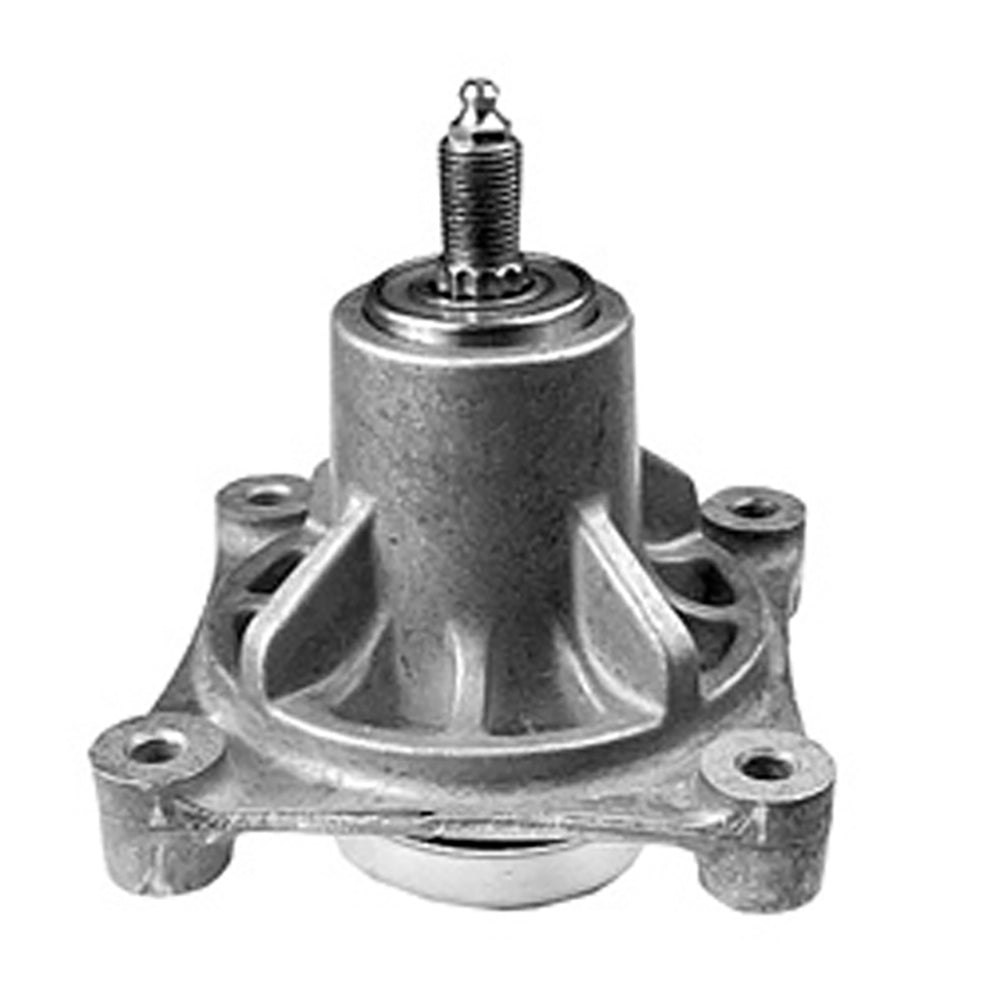

-(1) Spindle Assembly
-Height: 5 9/16"
-Bolt short housing
-5 point star center hole
-Grease fitting on threaded end
-Includes shaft, bearings and dust cap
-Replaces Part Number(s): 174356, 532174356, 532174358, 532192656, 539107515, 587125201
-

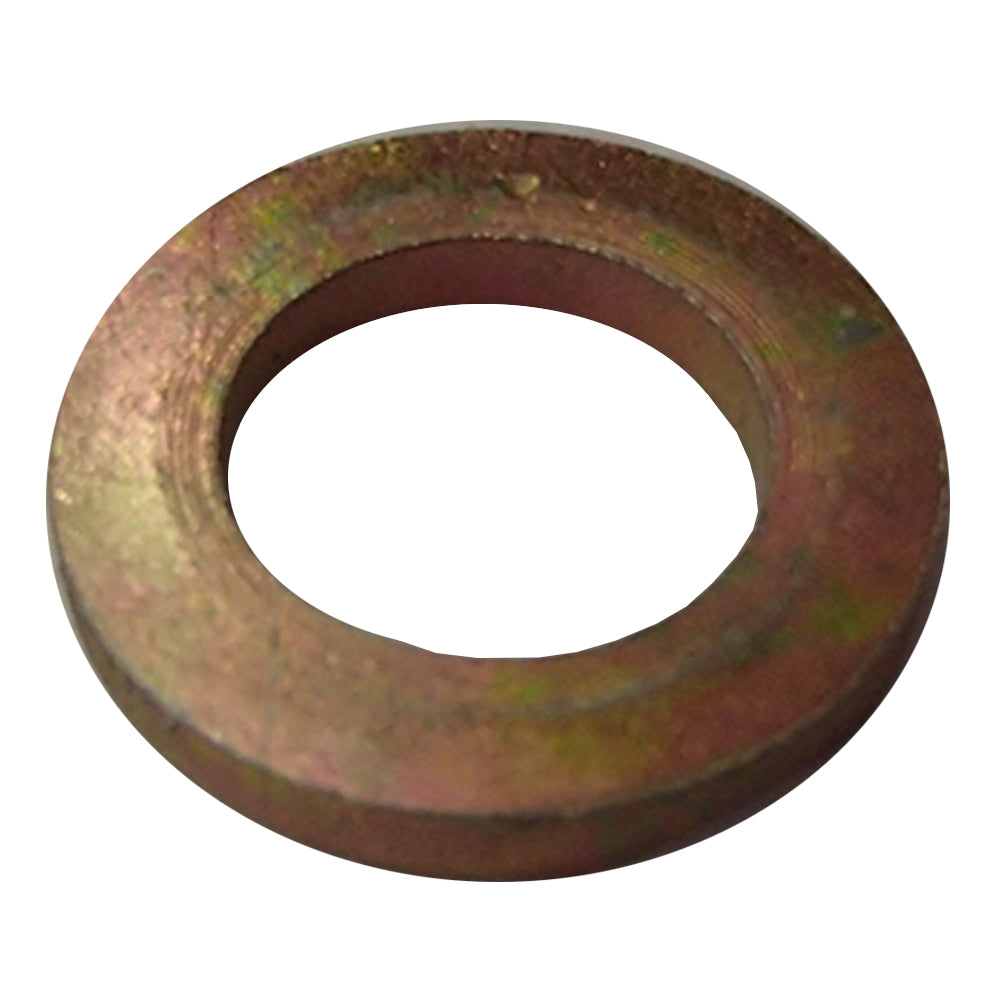

-(1) Spacer Washer
-I.D.: 11/16"
-O.D.: 1-1/8"
-Thickness: 5/32"
-Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053
-

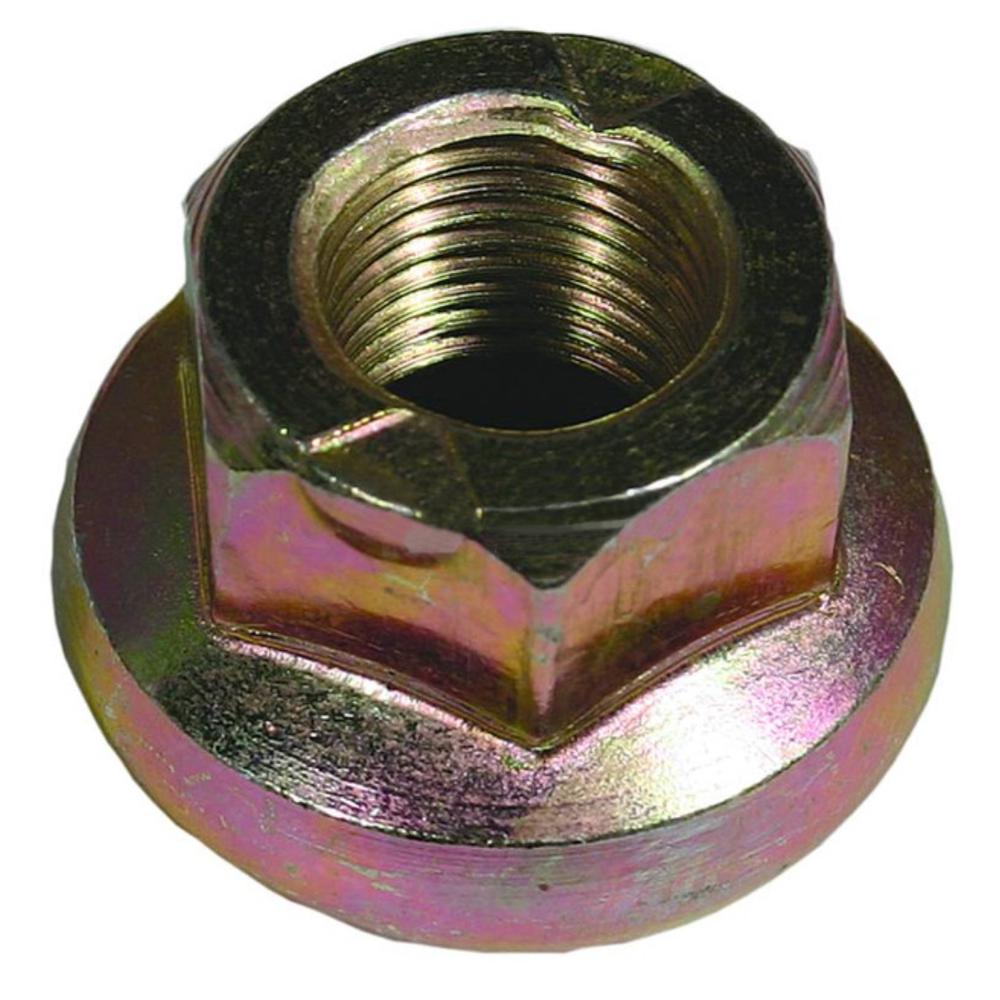

-(1) Pulley Lock Nut
-Thread Length: 9/16"-18,
-OD: 1-1/4"
-Thickness: 3/4"
-Type: Flange
-Hex: 7/8"
-Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801
-

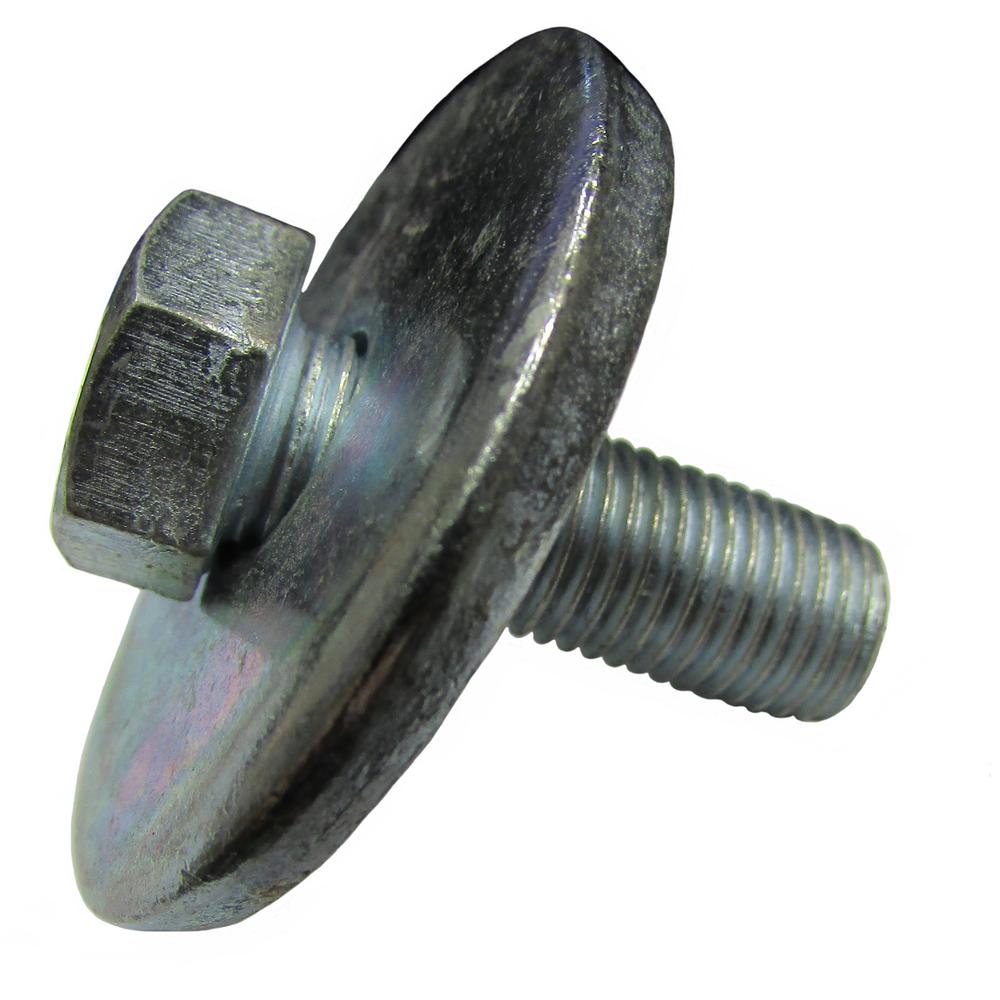

-(1) Blade Bolt w/ Flat Washer
-Comes with washer
-Threads: 20
-Length: 1-¼"
-Thread Size: 7/16"
-Replaces Part Number(s): 174365, 193003, 532193003
-

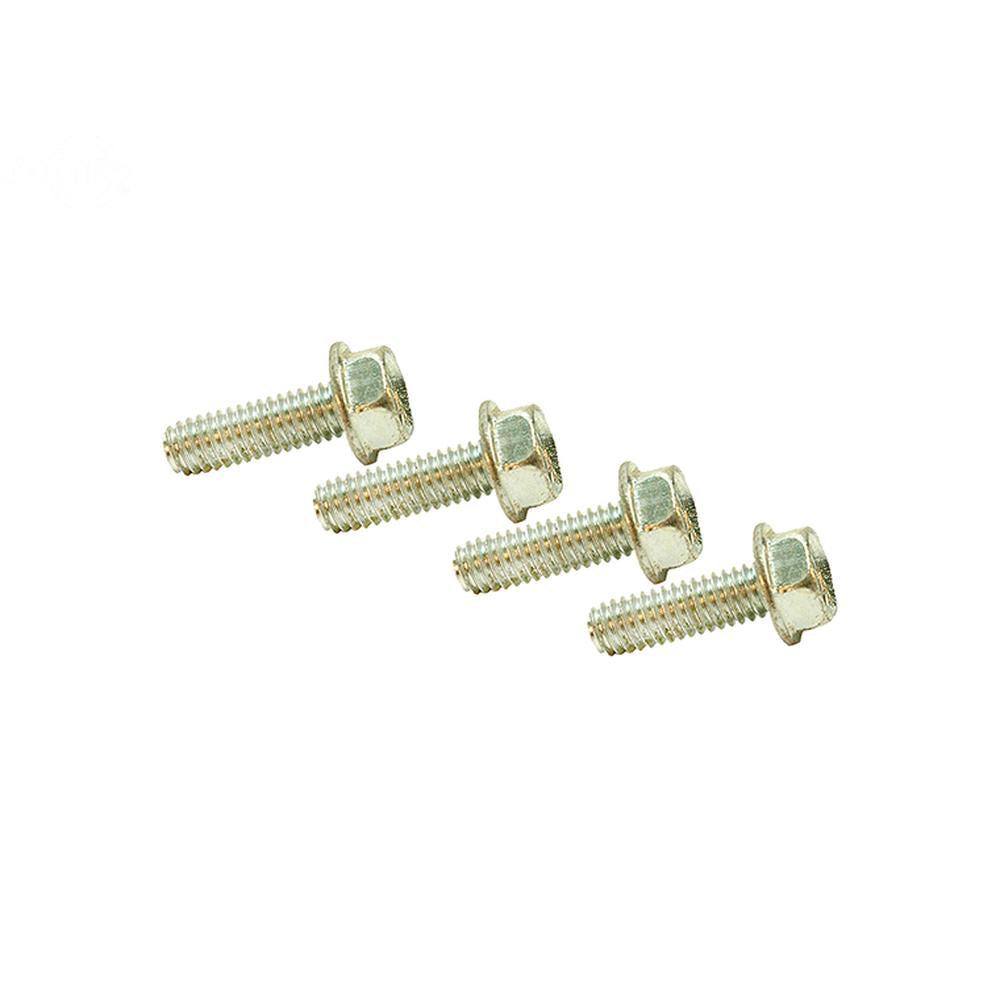

-(4) Self-Tapping Screw
-5/16 x 18-1"
-Replaces Part Number(s): 138776, 157722, 532138776, 532157722, 532173984, 584953901

Fits AYP:
Lawn Mower Models: 48" Decks built after 2001
Replaces Part Number(s): 174356, 187690, 129963, 532187690, 187860, 187860, 532445266, 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801, 174365, 193003, 532193003, 138776, 157722, 532173984, 584953901

Models This Part Fits:

48" Decks

Additional Information:

Assembly Includes: (1) Spindle Assembly Height: 5 9/16" Bolt short housing 5 point star center hole Grease fitting on threaded end Includes shaft, bearings and dust cap Replaces Part Number(s): 174356, 532174356, 532174358, 532192656, 539107515, 587125201 (1) Spacer Washer I.D.: 11/16" O.D.: 1-1/8" Thickness: 5/32" Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053 (1) Pulley Lock Nut Thread Length: 9/16"-18, OD: 1-1/4" Thickness: 3/4" Type: Flange Hex: 7/8" Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801 (1) Blade Bolt w/ Flat Washer Comes with washer Threads: 20 Length: 1-¼" Thread Size: 7/16" Replaces Part Number(s): 174365, 193003, 532193003 (4) Self-Tapping Screw 5/16 x 18-1" Replaces Part Number(s): 138776, 157722, 532138776, 532157722, 532173984, 584953901

Reference Numbers:

129963, 137266, 139729, 174356, 174356-A, 174365, 174365-A, 178342, 187690, 187690-A, 193003, 400234, 532137266, 532139729, 532174356, 532174356-A, 532174358, 532174365, 532187690, 532192656, 539107515, 539107522, 587125201, 73040900, 73050900
