2N9155B Maintenance & Tune Up Kit with Carb Float Fits Ford/New Holland 2N 8N 9N
2N9155B Maintenance & Tune Up Kit with Carb Float Fits Ford/New Holland 2N 8N 9N
Regular price
$244.00 AUD
Regular price
Sale price
$244.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Aftermarket Maintenance & Tune Up Kit with Carb FloatTech Info:

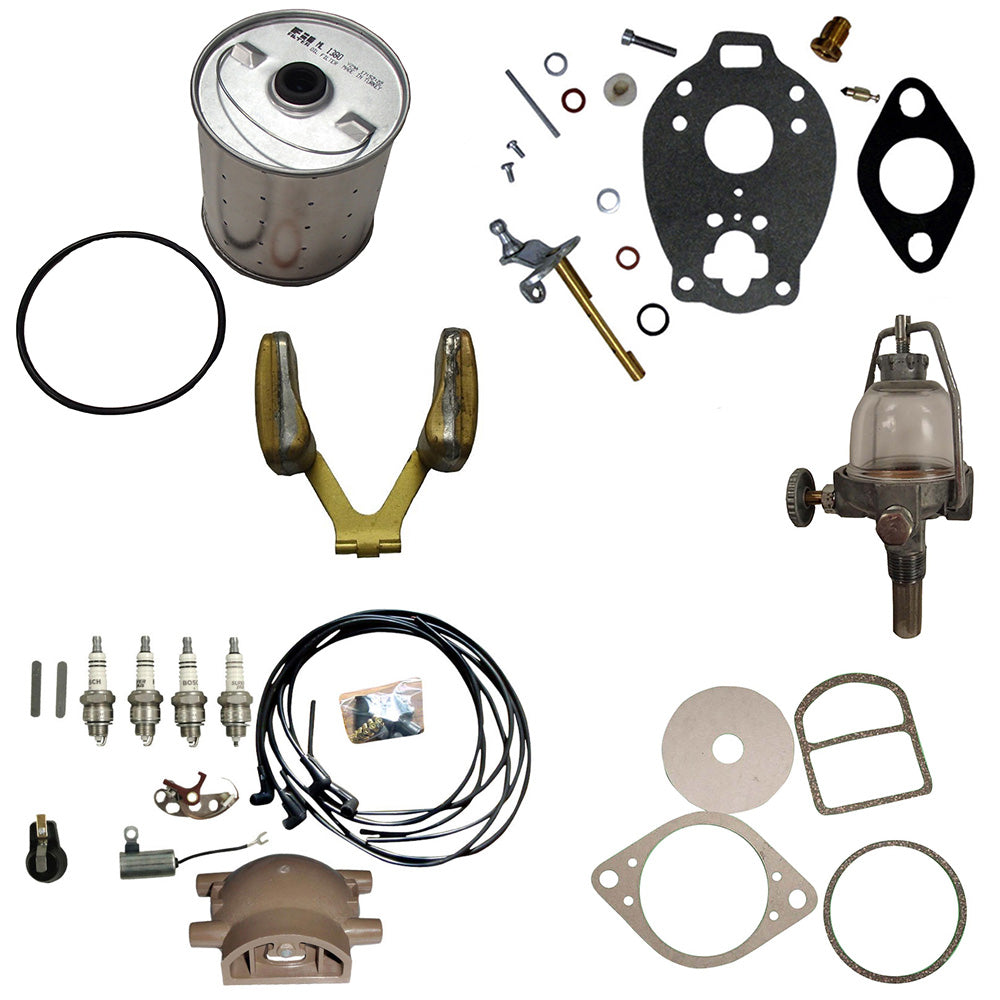

-Kit Contains:

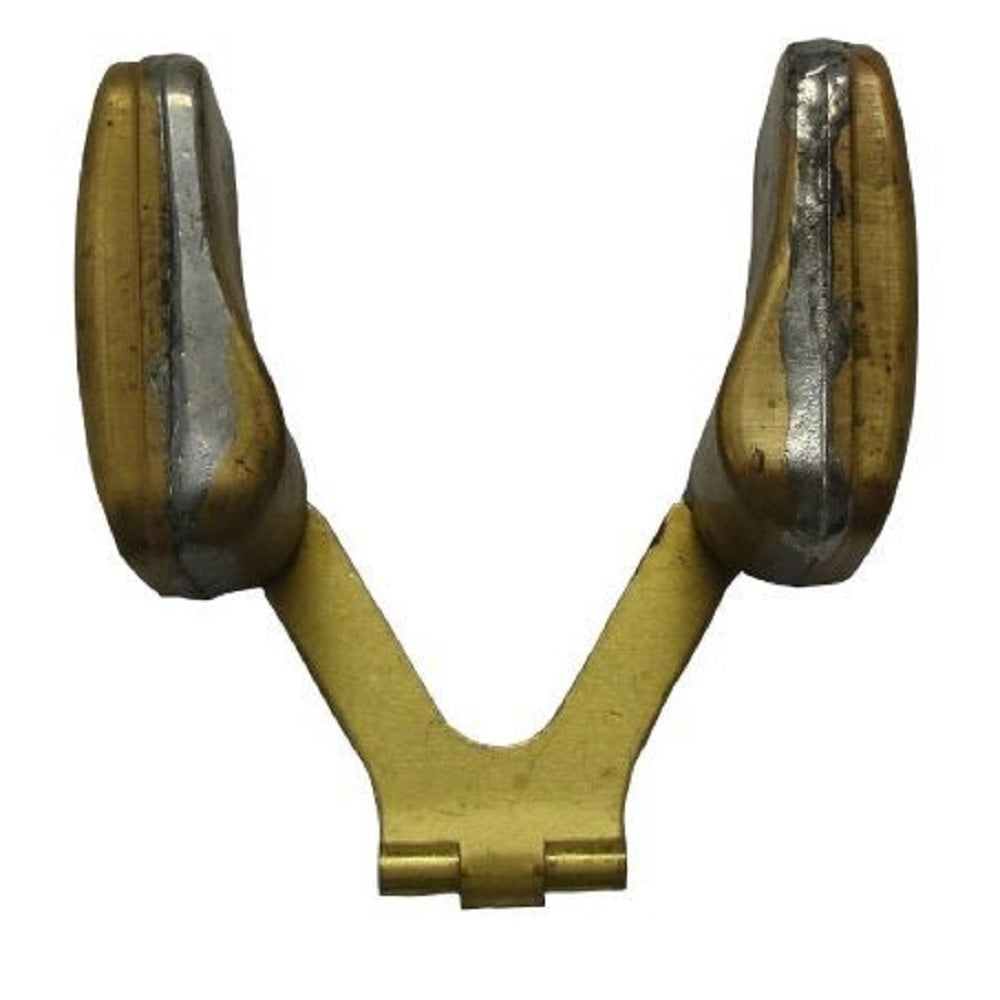

-(1) Carburetor Float
-For small bowl carbs
-The dimension from center of pin hinge to end of pontoon is 2.375" in length.
-Replaces Part Number(s): 9N9550A
-

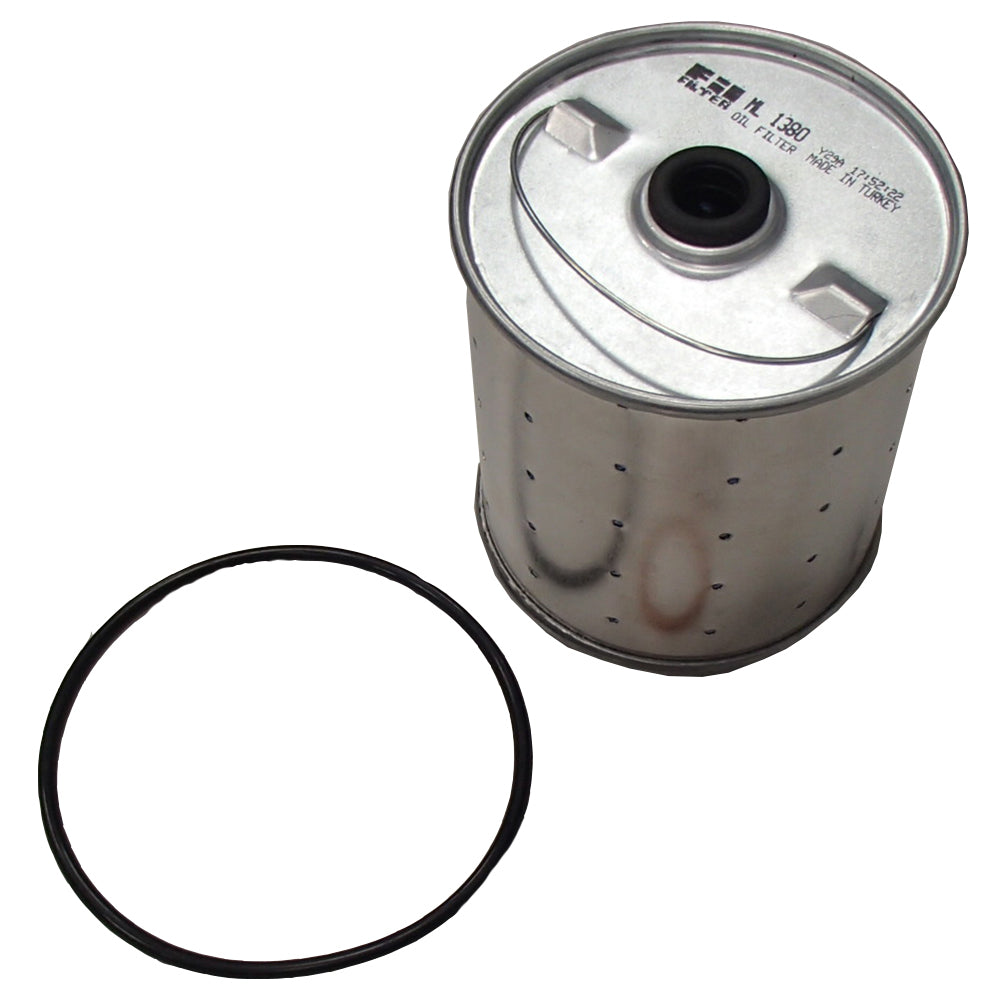

-(1) Oil Filter
-4-7/16" length
-3-23/32" outside diameter
-0.525" center stud hole diameter
-Canister style
-Replaces Part Number(s): APN6731B
-

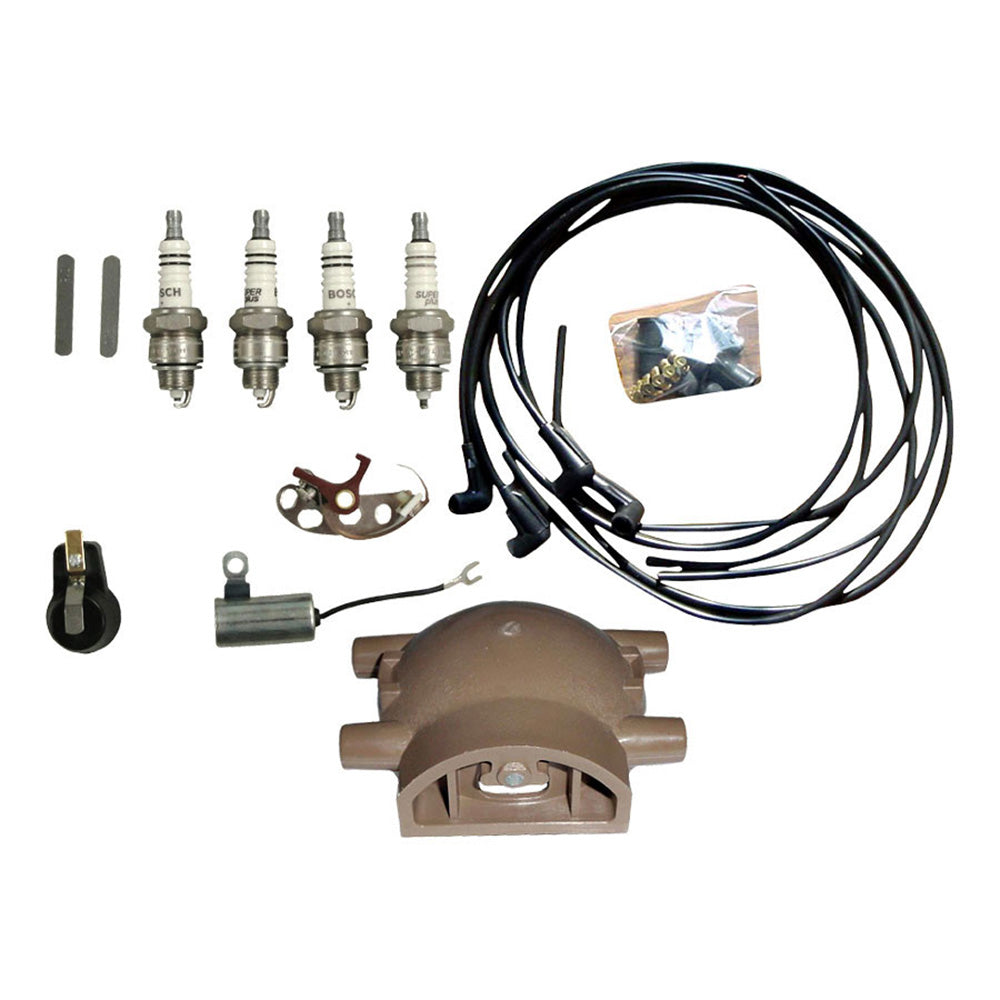

-(1) Complete Tune Up Kit
-Includes: Point Set, Rotor, Condenser, Distributor Cap, Wire Set & (4) 216 Autolite Spark Plugs.
-Replaces Part Number(s): 309786, 309786C
-

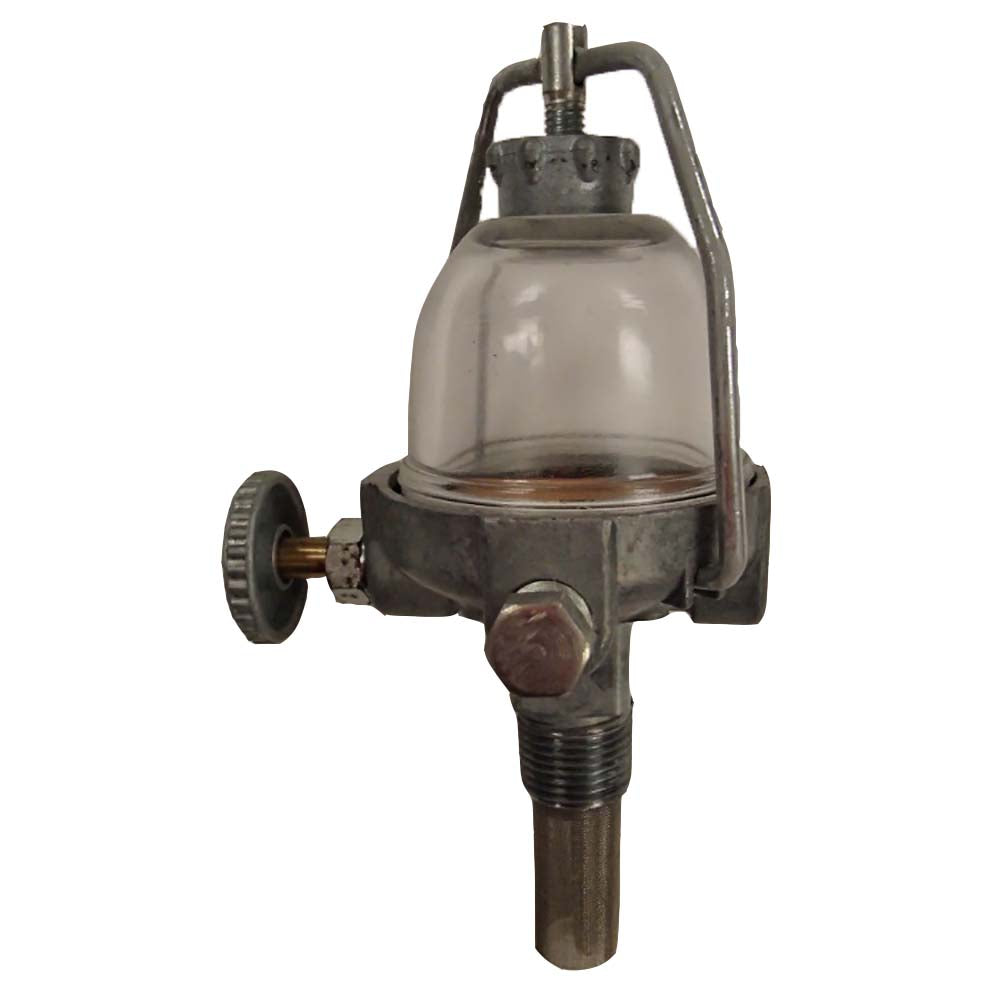

-(1) Sediment Bowl Assembly
-3/8" NPT fuel inlet
-1/4" fuel line outlet
-Mesh filter screen secured
-Replaces Part Number(s): 2N9155B, NAA9155B
-

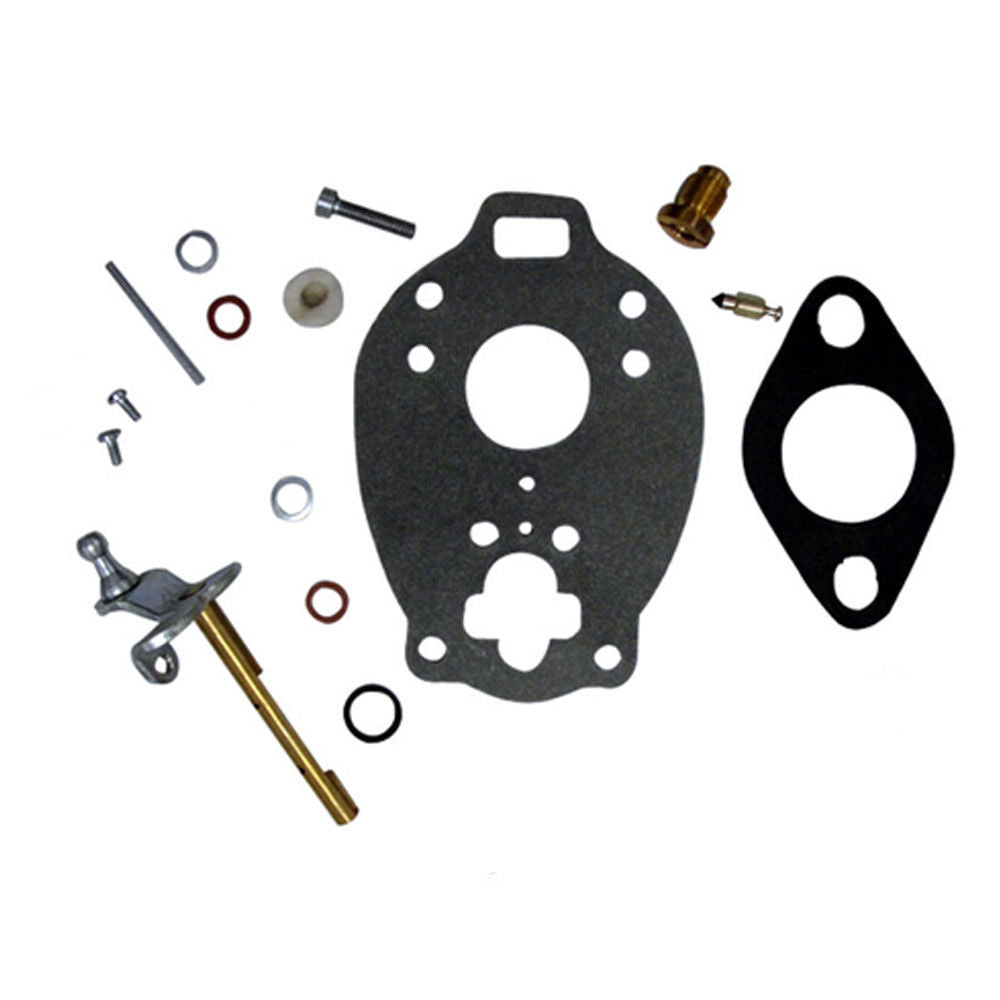

-(1) Basic Carb Kit
-Kit contains gaskets, float valve & throttle shaft.
-Replaces Part Number(s): 9N9510A, 8N9510C
-

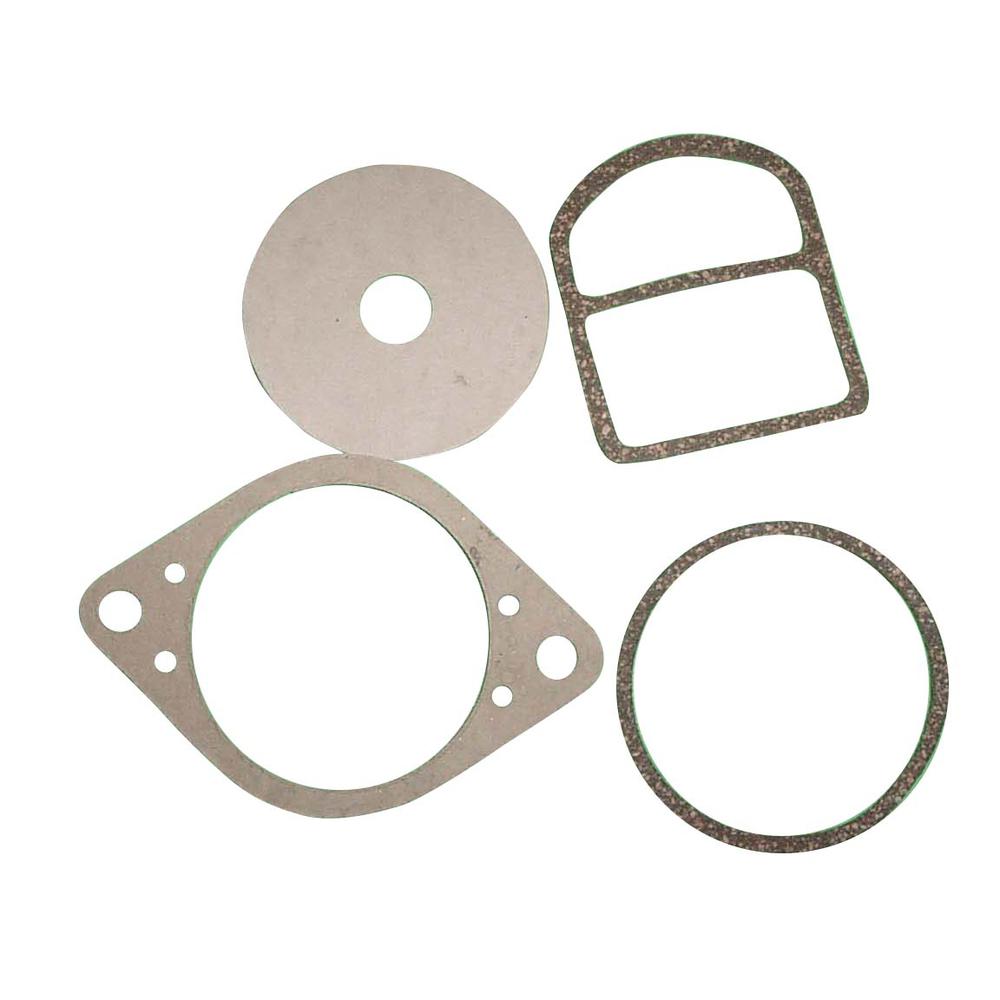

-(1) Distributor Gasket Kit
-For tractors with generator/alternator mounted on the RIGHT side as sitting in the seat - 1939-1950.
-For N-series tractors with front mount distributor.
-For engines with distributor mounted BEHIND the fan blade.
-Replaces Part Number(s): 89838311, 91A12114, 9N12104, 9N12140A, 9N12143, 9N12276A, 9N12276B
Fits Ford/New Holland:
Tractor Models: 2N, 9N, 8N
Model Breaks: with Front Mount Distributor
Replaces Part Number(s): 9N9550A, APN6731B, 309786, 309786C, 2N9155B, NAA9155B, 9N9510A, 8N9510C, 89838311, 91A12114, 9N12104, 9N12140A, 9N12143, 9N12276A, 9N12276B
