1107386 One Aftermarket Starter Repair Kit Fits Teledyne Wisconsin Fits Delco 12

Name: 1107386 One Aftermarket Starter Repair Kit Fits Teledyne Wisconsin Fits Delco 12
SKU: D1689-STRTREPAIRKIT
Price: 53.0 USD
Availability: OutOfStock

1107386 One Aftermarket Starter Repair Kit Fits Teledyne Wisconsin Fits Delco 12

$53.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

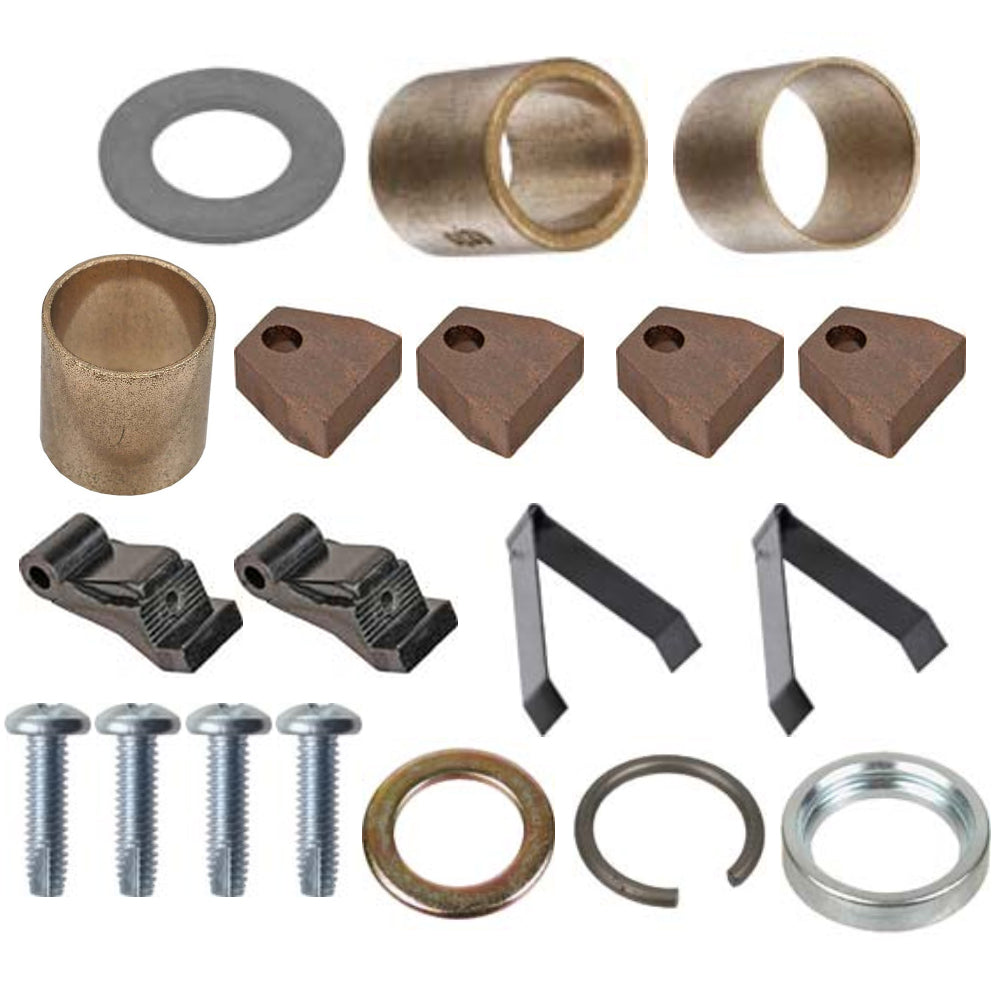

One (1) New Aftermarket Replacement Starter Repair Kit

Fits Wisconsin Models: 12004, 12011, 12013, 12023

Kit Contains:
(1) Thrust Washer
(1) Commutator End Bushing
(1) Center Bushing (Early)
(1) Center Support Bushing (Late)
(1) Starter Bushing
(4) Starter Brush
(2) Brush Holder
(2) Brush Spring
(4) Brush Holder Screws
(1) Steel Thrust Washer
(1) Retaining Ring
(1) Collar

Replaces Part Number: 1107386

Models This Part Fits:

12004, 12011, 12013, 12023

Additional Information:

(1) Thrust Washer Measurement: Standard ID: 0.563" / 14.3mm OD: 1" / 25.4mm Thickness: 0.058" / 1.47mm Replaces Part Numbers: 1914842 (1) Commutator End Bushing Location Used: DE Housing ID: 0.501" / 12.73mm OD: 0.627" / 15.93mm Width: 0.776" / 19.7mm Bushing Type: Oilite Bushing Size: Standard Replaces Part Numbers: 10470767, 1857960, 1862383, 1862391, 1906945 (1) Center Bushing (Early) ID: 0.755" / 19.18mm OD: 0.815" / 20.7mm Width: 0.715" / 18.16mm Bushing Type: Oilite Replaces Part Numbers: 1934485 (1) Center Support Bushing (Late) ID: 19.23mm OD: 22.34mm Length: 18.30mm Replaces Part Numbers: 1894023 (1) Starter Bushing ID: 0.564" / 14.33mm OD: 0.629" / 15.98mm Width: 0.65" / 16.51mm Replaces Part Numbers: 1938743, 35058, 810620, 9B-9103, D1676, MCX203 (4) Starter Brushes Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces Part Numbers: 1906945, 1906966, 1946400 (2) Brush Holders For Starters Insulated & Tapped with 8-32 Threads Replaces Part Numbers: 5M3294, 665545 (2) Brush Springs 20-27MT Series w/ Step-Down Field Case Replaces Part Numbers: 6515795, 6515795REM, 6599152, 6630180, 6630182 (4) Brush Holder Screws Measurement: Standard Shank Length: 0.626" / 15.9mm Thread Size: 8-32 Head Style: Phillips Pan Head Notes: Self-Tapping Replaces part Numbers: 451-08013 (1) Steel Thrust Washer Measurement: Standard ID: 0.5" / 12.7mm OD: 0.732" / 18.6mm Thickness: 0.063" / 1.6mm English Size: 1/2 Replaces Part Numbers: 456-01000, 456-31000 (1) Retaining Ring ID: 0.52" / 13.2mm OD: 0.65" / 16.5mm Thickness: 0.067" / 1.7mm Replaces Part Numbers: 1928022 (1) Collar ID: 0.563" / 14.3mm OD: 0.783" / 19.9mm Thickness: 0.157" / 4mm Notes: Drive Replaces: HDW9203
