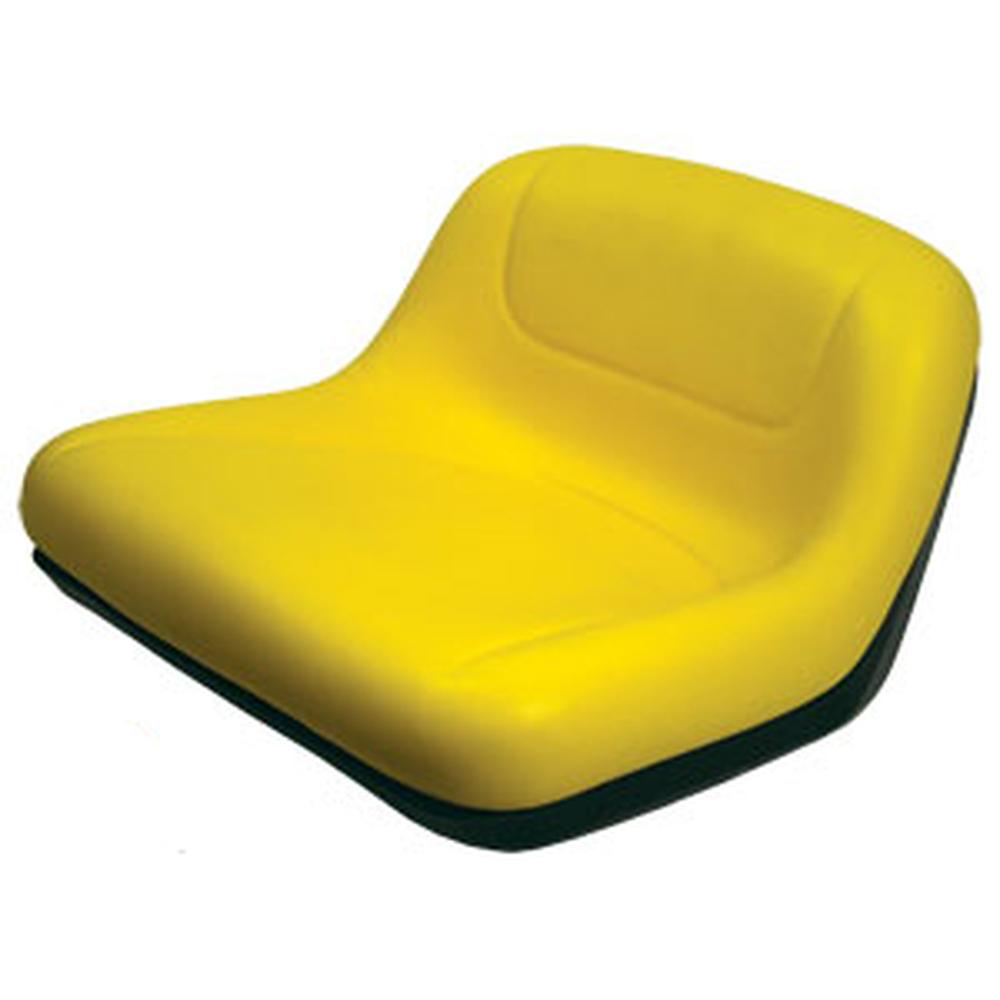

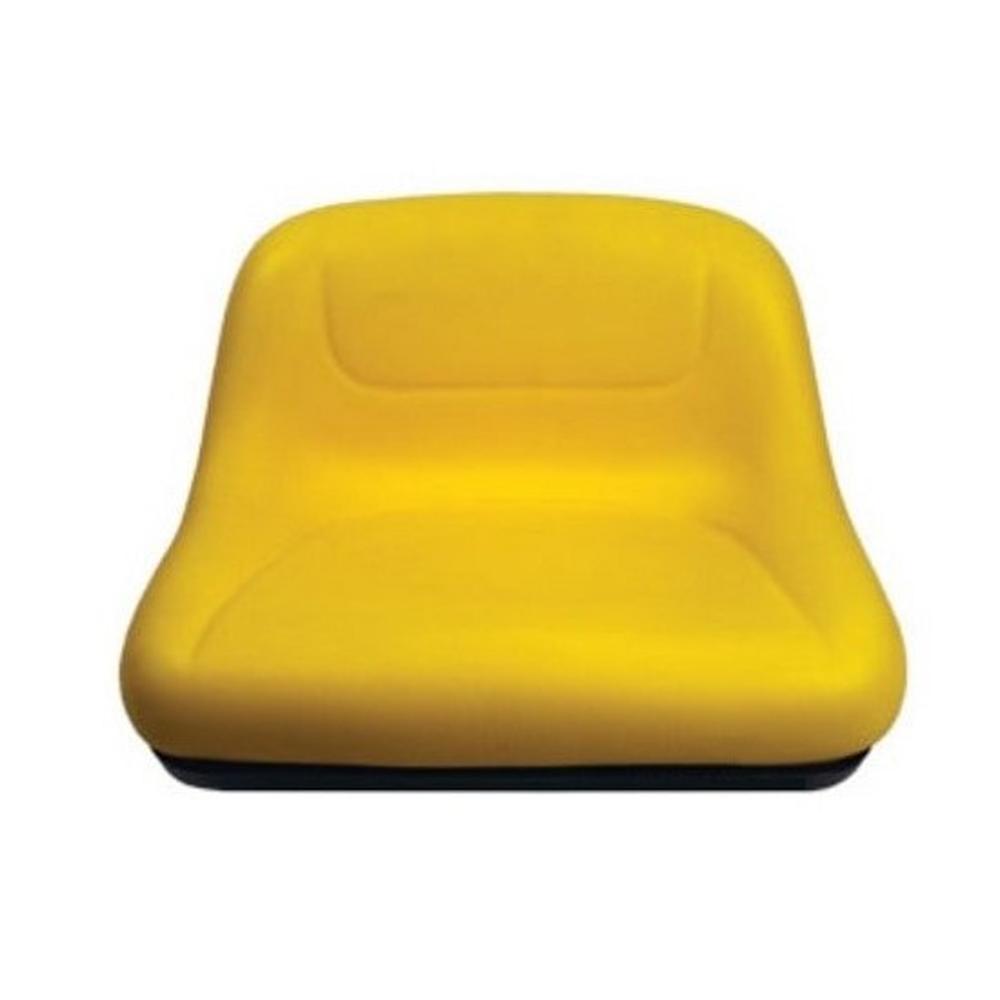

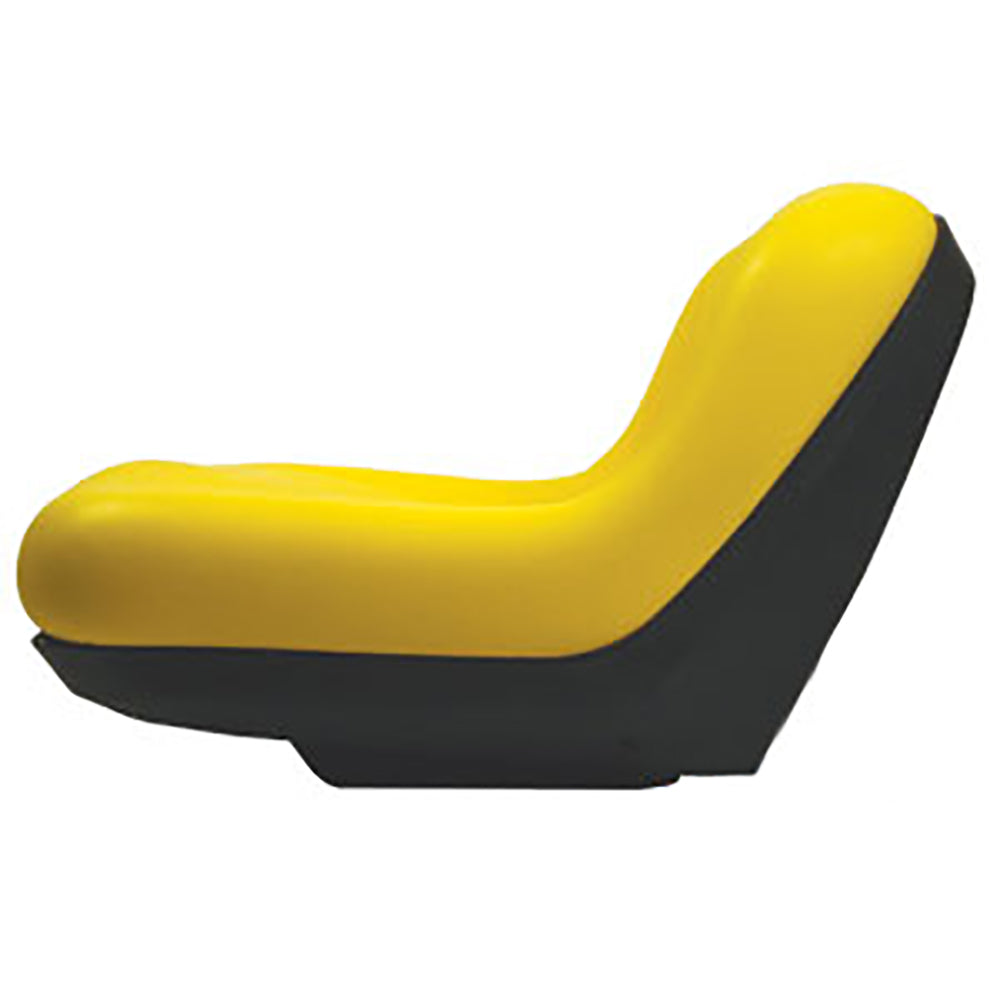

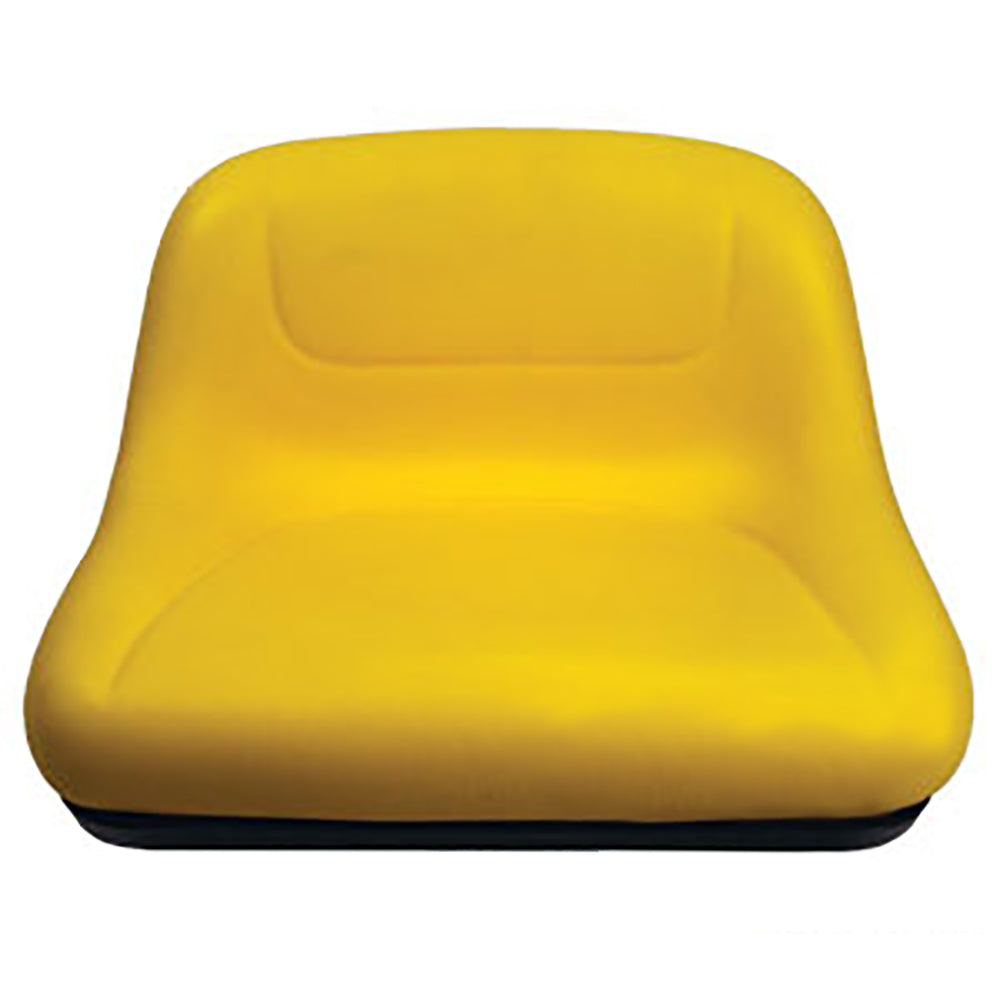

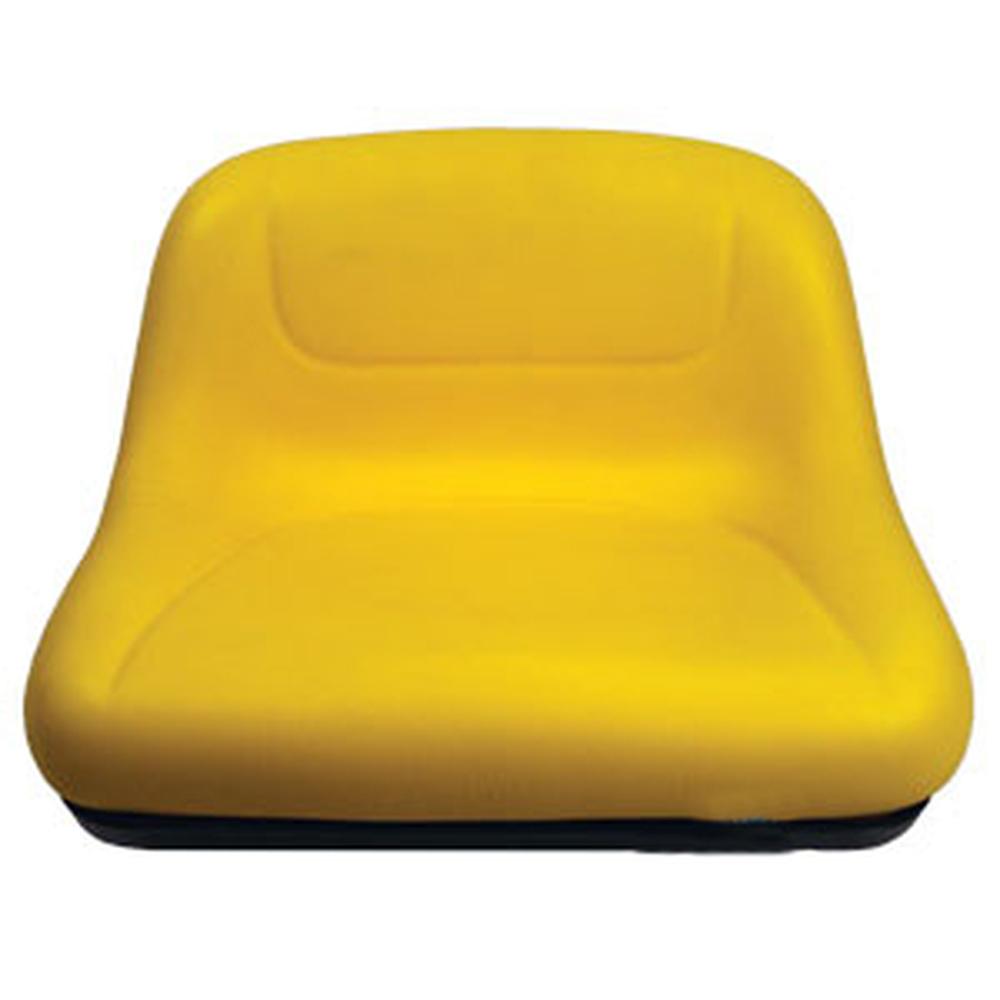

Seat Fits John Deere Lawn Tractor 100 series mower L100 L105 L110 L111 X110

Seat Fits John Deere Lawn Tractor 100 series mower L100 L105 L110 L111 X110

$88.99 USD
$88.99 USD
Sale Sold out
Shipping calculated at checkout.

More payment options
One New Aftermarket Replacement Mid Back Seat that Fits John Deere Flail Mower Model: 115

Also fits:

Fits John Deere Riding Mower Models: LA100, L100, L105, L107, L108, L110, L111, X110, 102, 105, 125

NOTE: Original Seat Uses M8X16 Mounting Bolts, these Seats use 5/16"-18 NC Bolts.

Does Not Work With Operator Presence Switch

Replaces Part Number: GY20495

Models This Part Fits:

100 Series, 102, 105, 115, 125, L100, L100 102 L105 L107 L108 L110 LA100 X110, L105, L107, L108, L110, L111, LA100, X110

Additional Information:

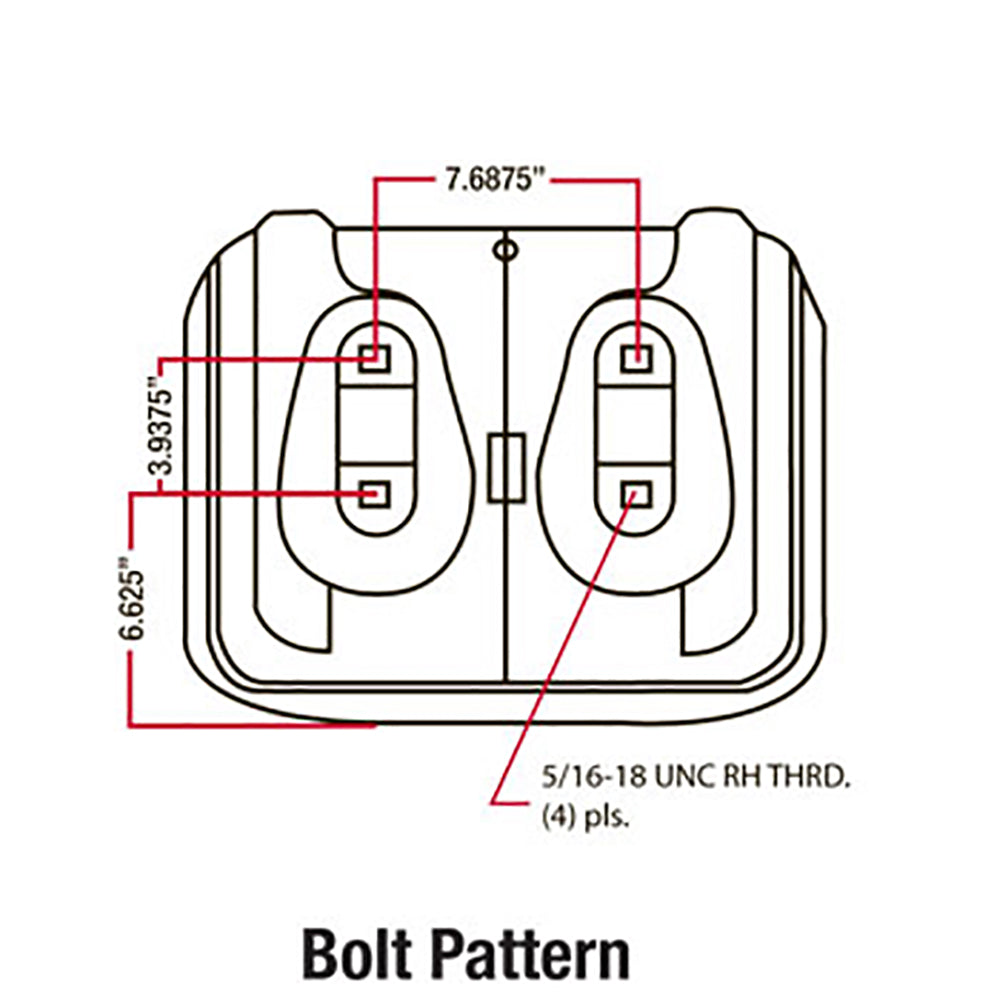

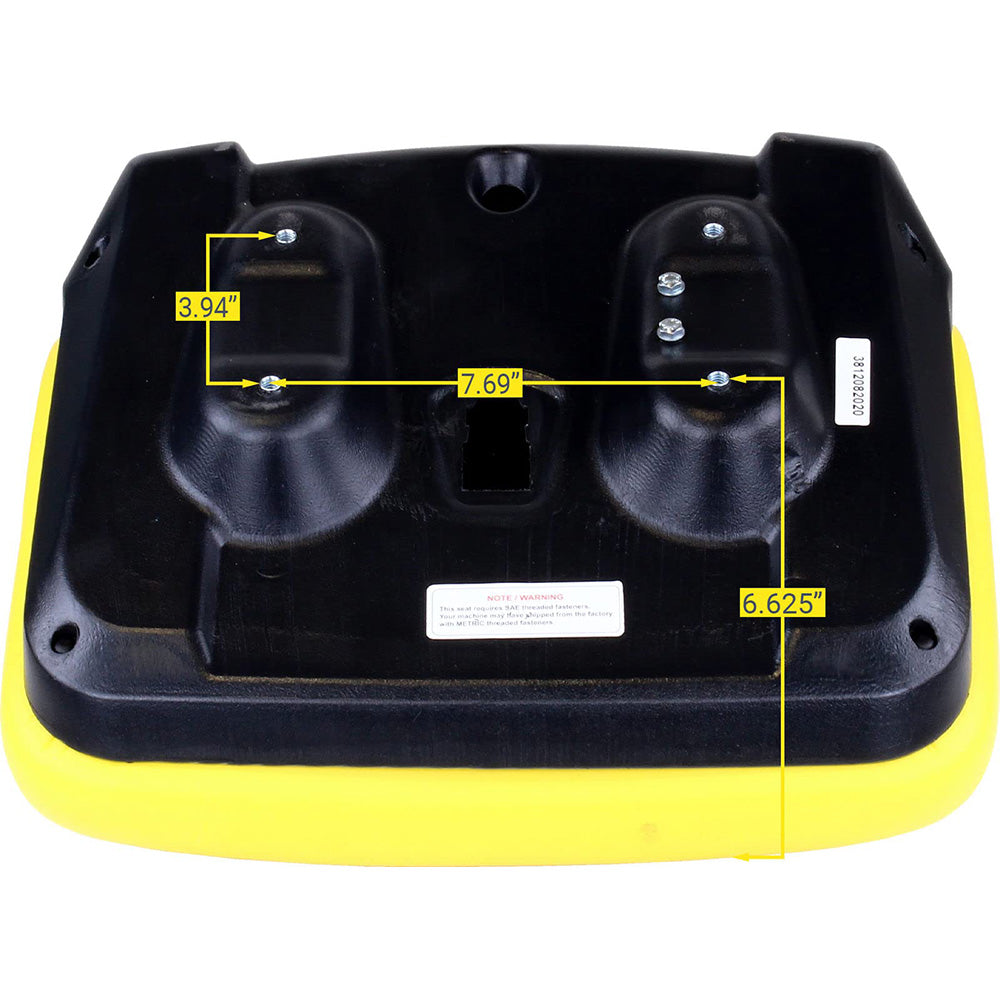

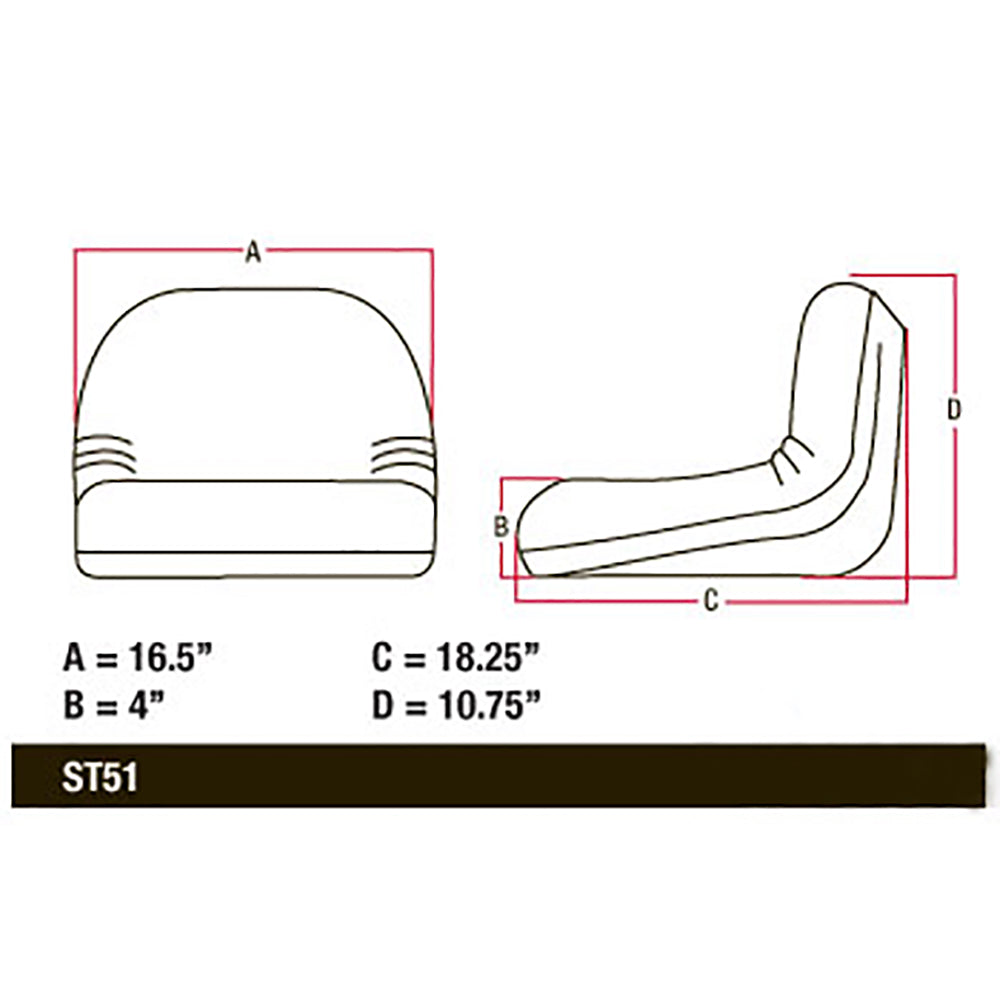

Seat does have a provision for operator presence switch Original Seat Uses M8X16 Mounting Bolts, this seat uses 5/16"-18 NC bolts Width side to side: 16.5" Width front to back: 18.25" Thickness: 4" Height: 10.75"

Reference Numbers:

A-B1GY20495, A-B1GY20495-A, A-GY20495, A-GY20495-A, AUC11475, B1GY20495, GY20495, GY20495-A, GY21209, gy20495, gy20495-A
