48" Deck Rebuild Kit Fits John Deere L120 & L130 Lawn Mowers

Name: 48" Deck Rebuild Kit Fits John Deere L120 & L130 Lawn Mowers
SKU: KT-LAB40-0004
Price: 249.82 USD
Availability: InStock

48" Deck Rebuild Kit Fits John Deere L120 & L130 Lawn Mowers

$249.82 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement 48" Deck Rebuild Kit

Fits John Deere Lawn Mower Models: L120 & L130

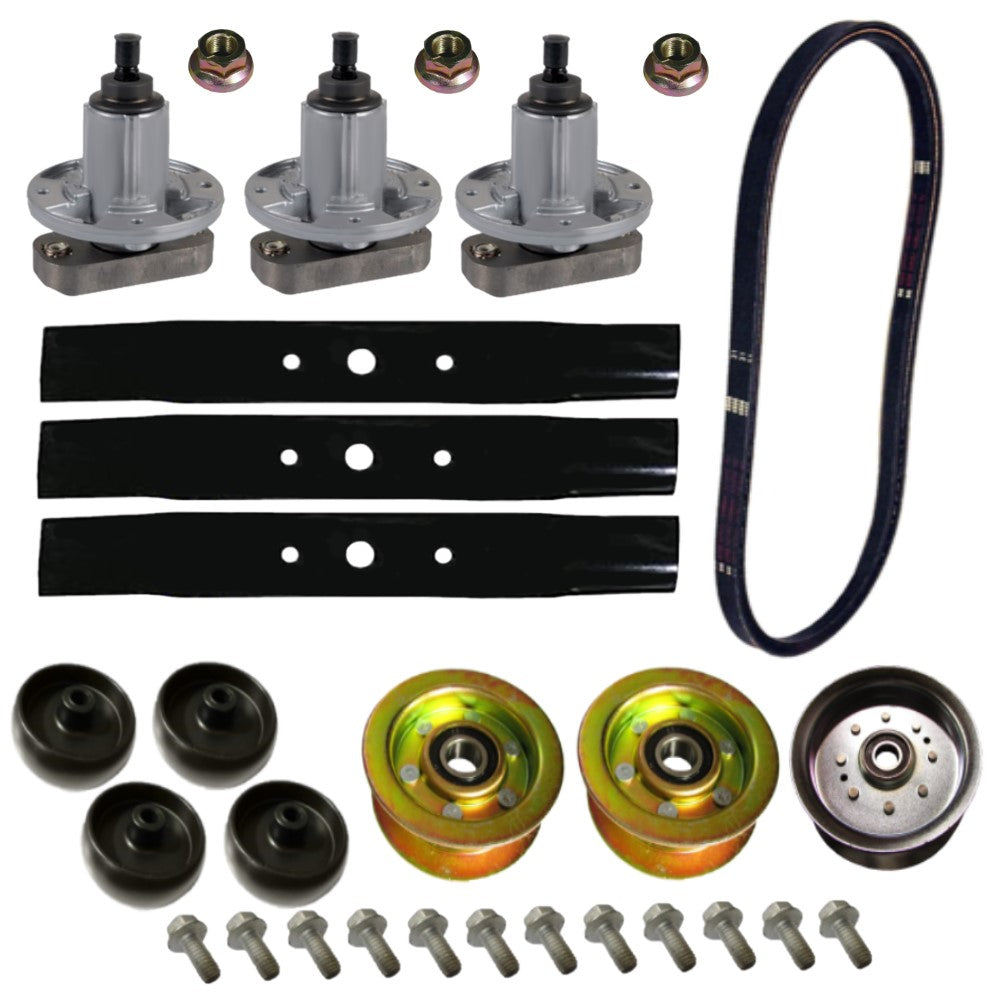

Kit Includes:
(3) Spindle, (12) Thread Cutting Bolt, (3) Blade, (1) Belt, (1) Steel Flat Idler Pulley, (2) Flat Idler Pulley,
(3) Pulley Lock Nut, (4) Solid Deck Wheel

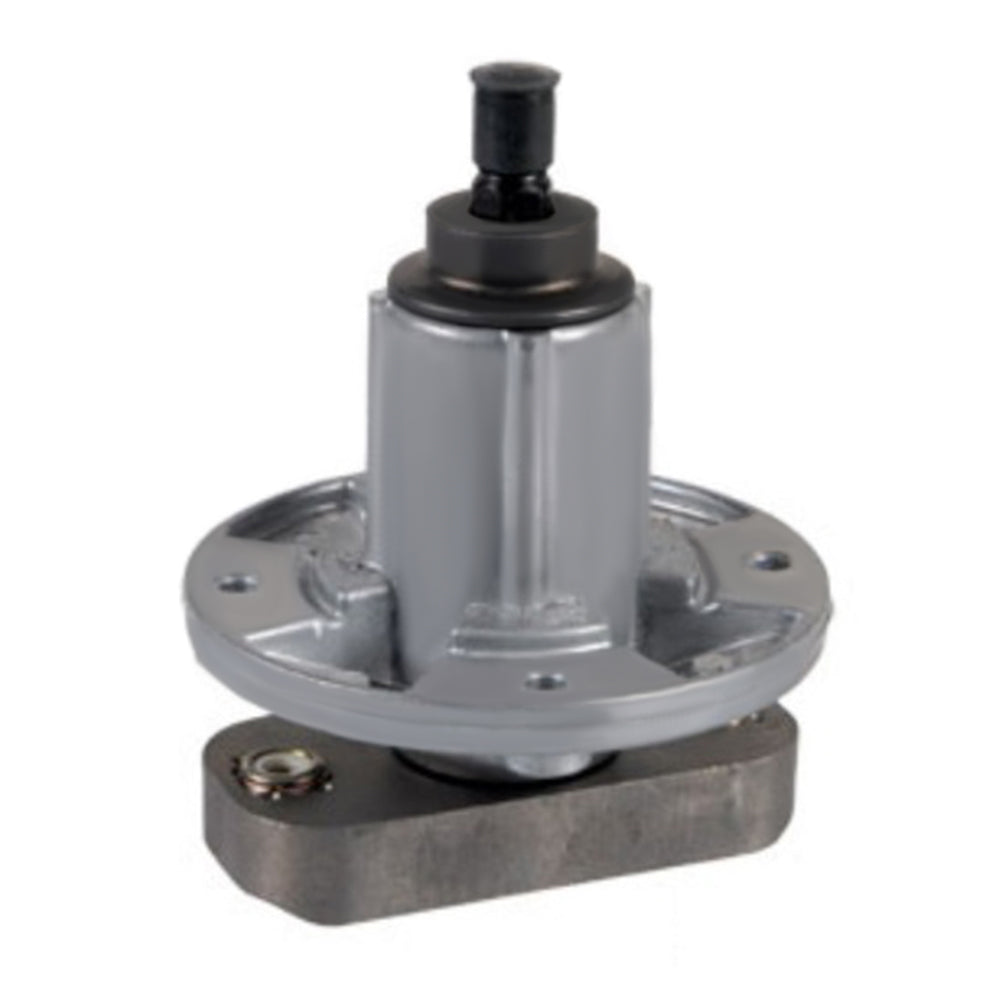

Spindles Tech Info:
With Grease Fitting
Replaces Part Numbers: GY20050, GY20479, GY20785

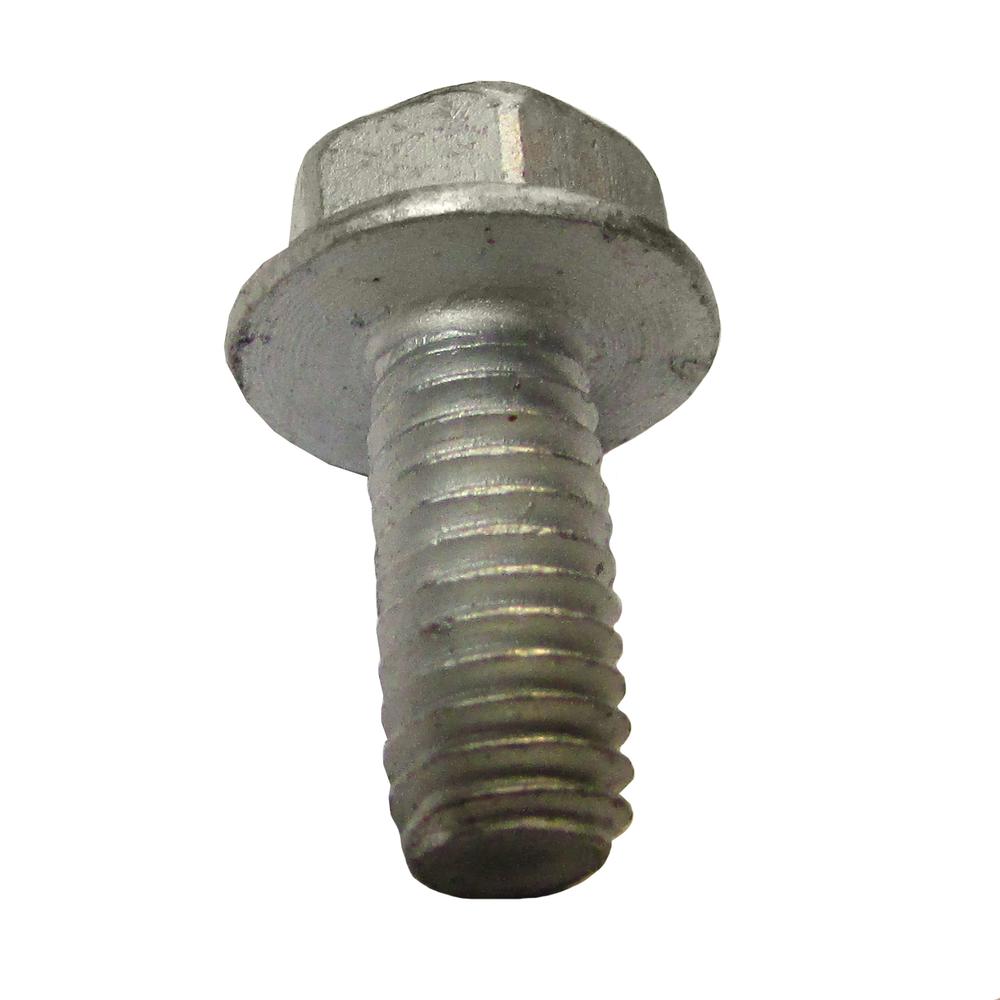

Thread Cutting Bolt Tech Info:
Length: 3/4"
5/16"-18
Replaces Part Numbers: GX20234, GX22456

Pulley Locknut Tech Info:
Thread Length: 9/16"-18
Outer Diameter: 1-1/4"
Thickness: 3/4"
Type: Flange
Hex: 7/8"
Replaces Part Numbers: 137266, 139729, 178342, 400234

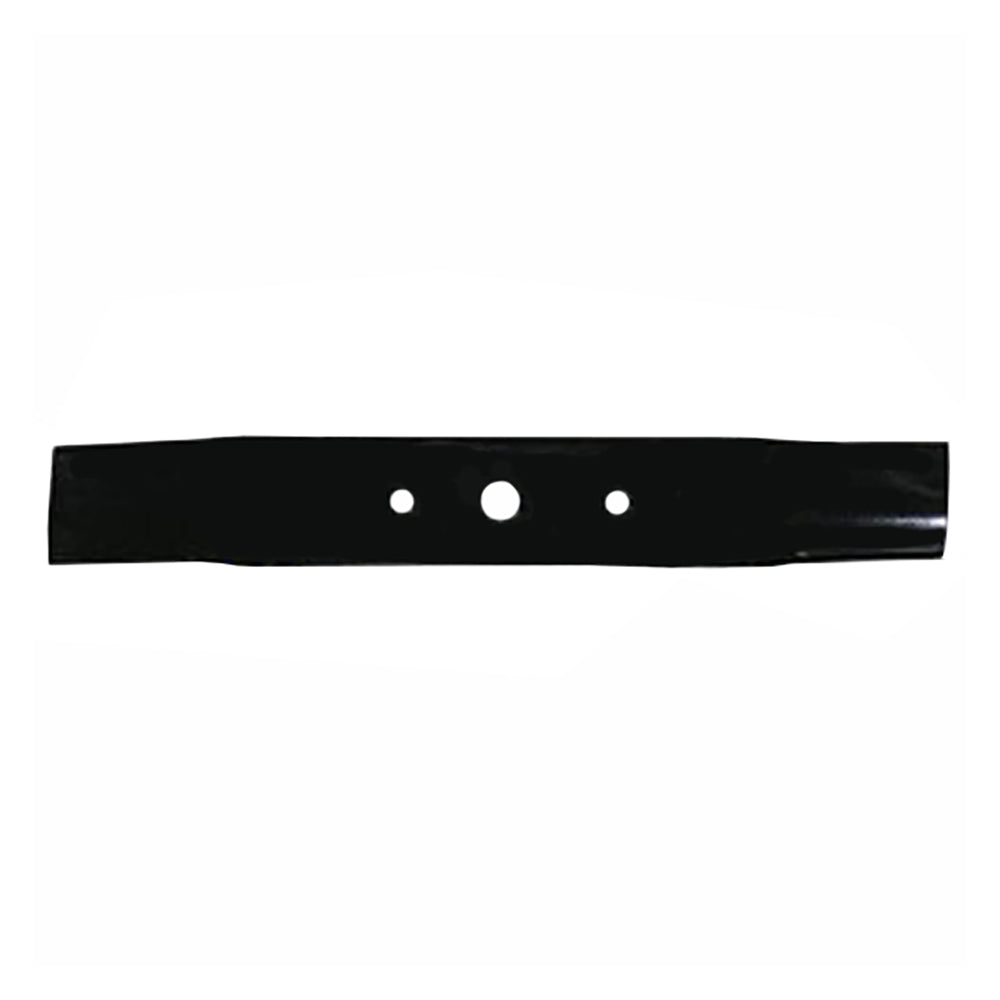

Blade Tech Info:
Length: 17"
Width: 2-1/2"
Thickness: 0.156"
Center Hole: 11/16"
Outer Hole 13/32"
3-3/4" C-C
Replaces Part Numbers: GX20250, GY20568

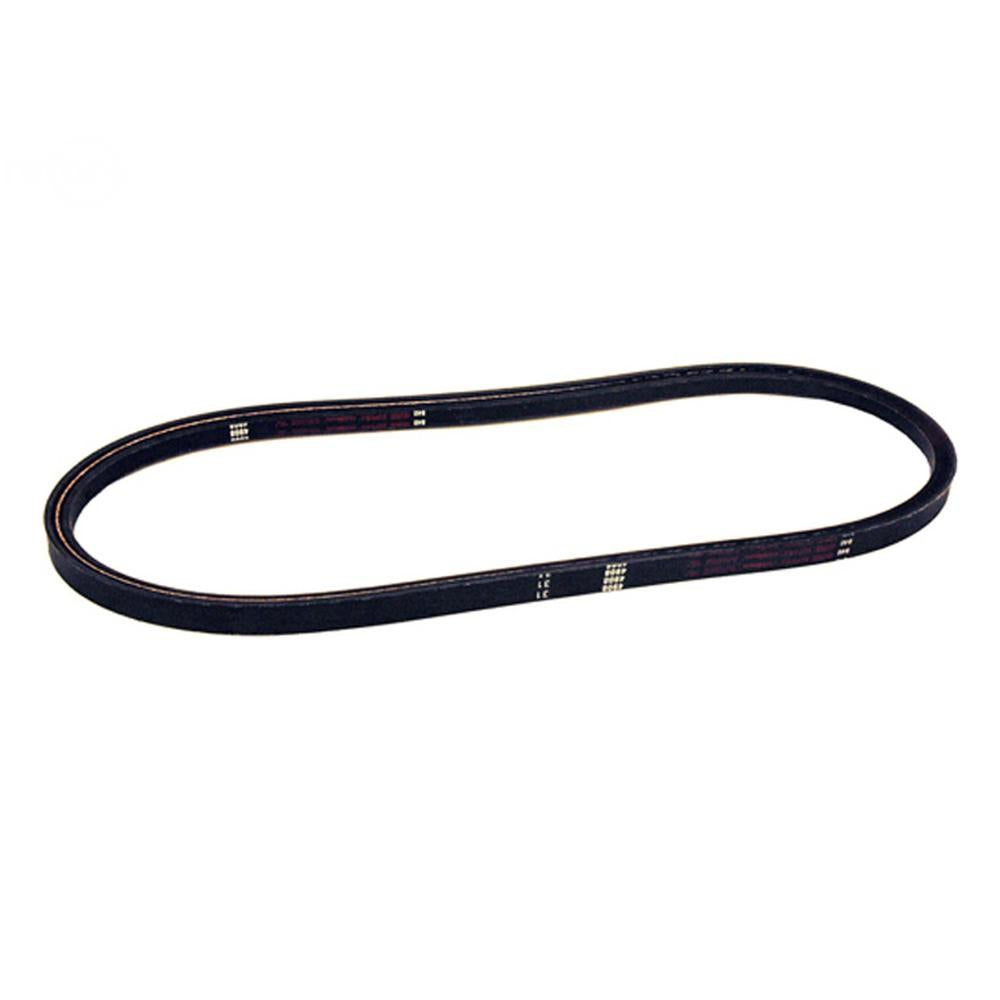

Belt Tech Info:
Width: 1/2"
Length: 141-1/8"
Replaces Part Numbers: GX21833, 07217400

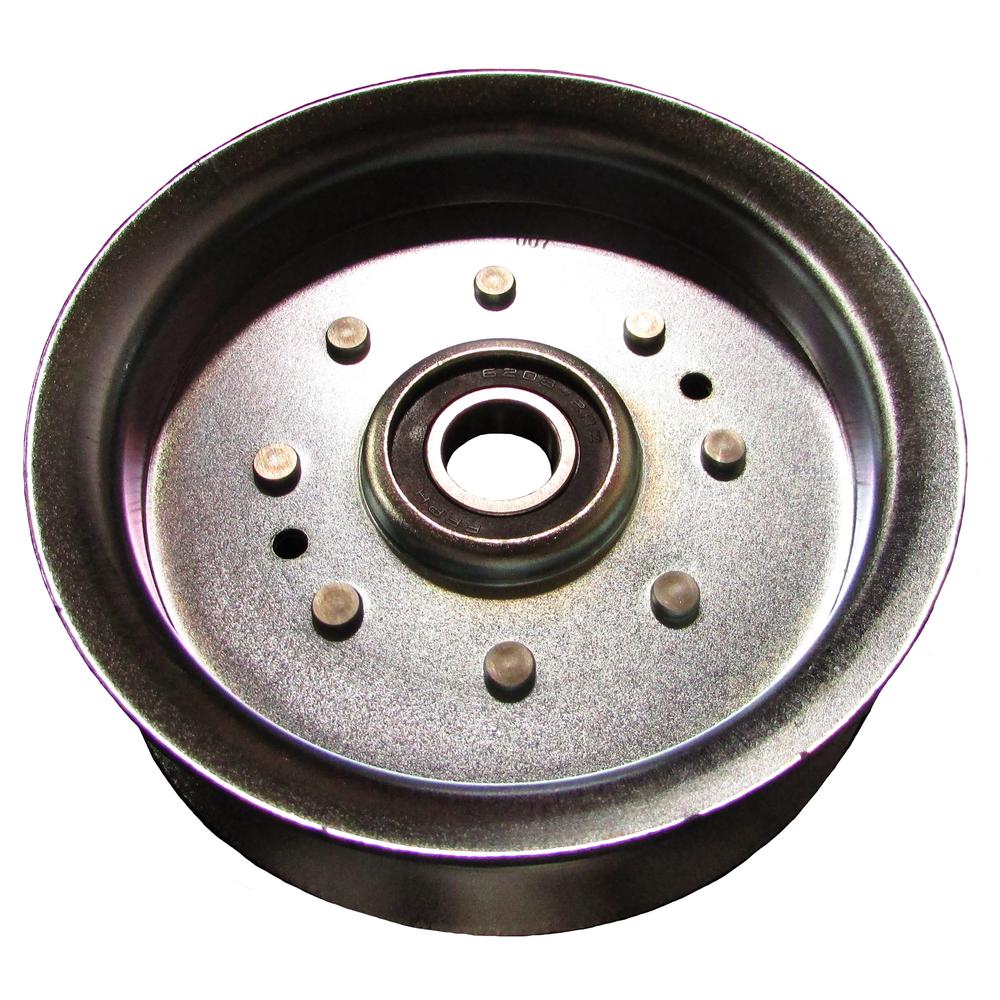

Steel Flat Idler Pulley Tech Info:
Outer Diameter: 5-1/4"Including Flanges
Inner Diameter: 11/16"
Height: 1-3/4"
Replaces Part Numbers: GY20110, GY20629, GY22082

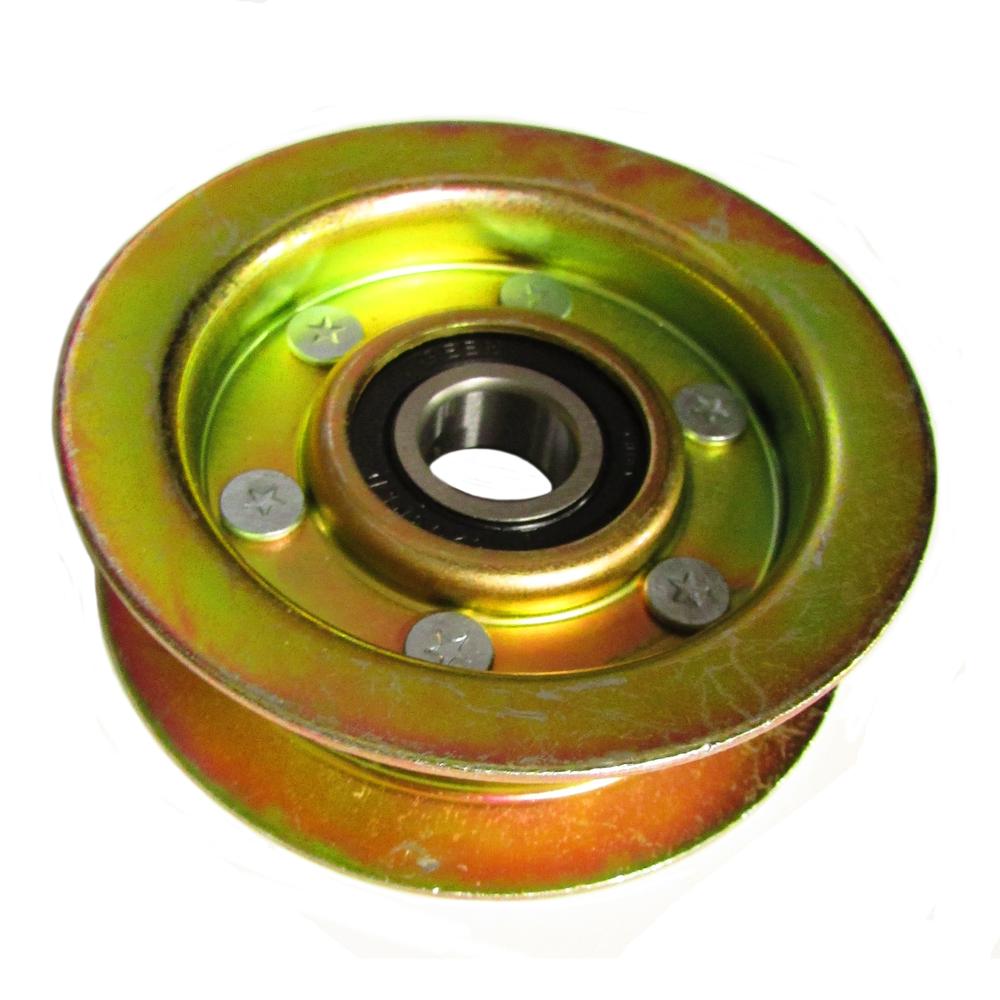

Flat Idler Pulley Tech Info:
Outer Diameter: 3-5/8"
Inner Diameter: 11/16"
Height: 1-3/16"
Replaces Part Numbers: GY20067, GY22172

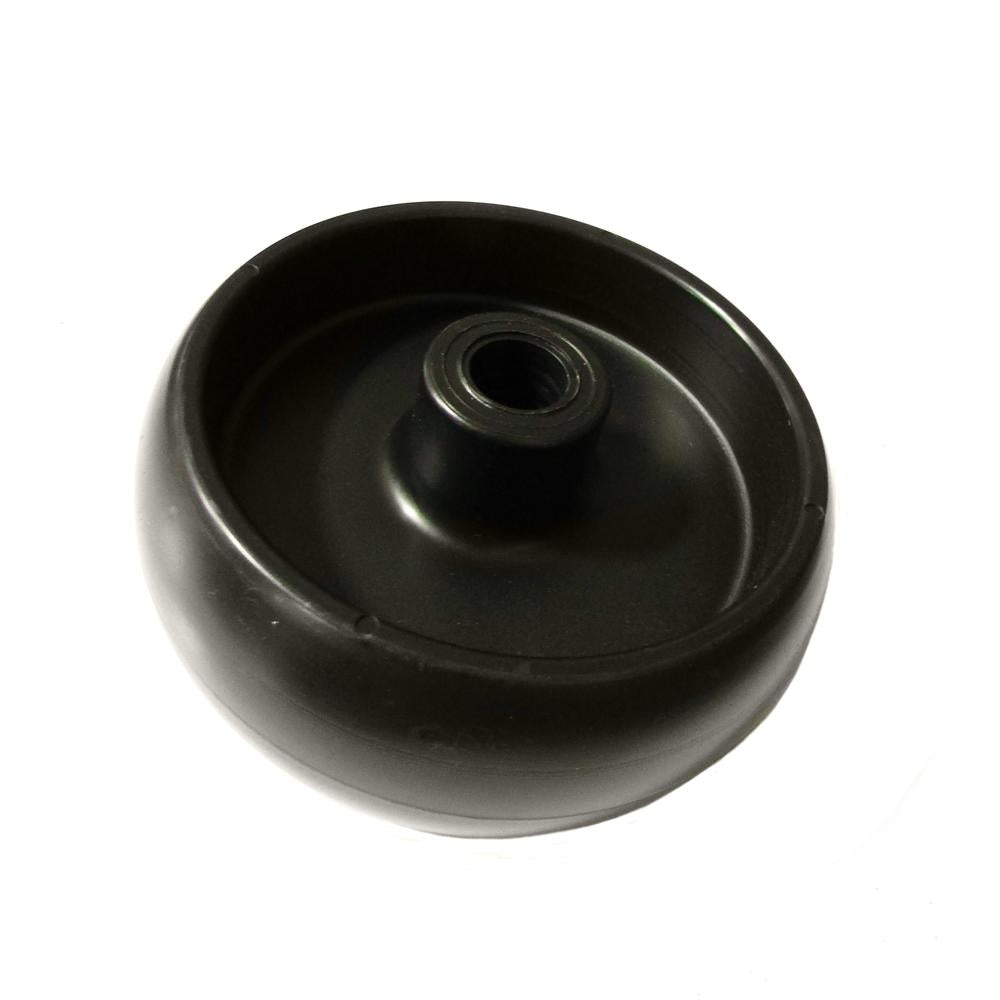

Solid Deck Wheel Tech Info:
Center Hole (Bore): 5/8"
Hub: 1-3/4" Offset
Tread: Smooth
Bearing Type: None
Wheel Size: 5" x 2" (1.785" Wide)
Material: Plastic
Wheel Color: Black
Bolts not Included
Replaces Part Numbers: GX10168

Available Individually, In Other Multiples, and Various Kits - Please See Our Other Listings!

Models This Part Fits:

L120, L130

Additional Information:

(3) Spindle - GY20050, GY20785 With grease fitting Replaces Part Number(s): GY20050, GY20785 (3) Blade - GX20250, GY20568 17" length, 2-1/2" width, 0.156" thick, 11/16" CH, 13/32" OH, 3-3/4" C-C. (3) Blades needed for 48" Cut Replaces Part Number(s): GX20250, GY20568 (3) Pulley Lock Nut - 532137266, 532139729, 532400234, 73040900, 73050900 Thread Length: 9/16"-18 OD: 1-1/4" Thickness: 3/4" Type: Flange Hex: 7/8" Replaces Part Number(s): 532137266, 532139729, 532400234, 73040900, 73050900 (2) Flat Idler Pulley - GY20067, GY20110, GY20629, GY22172 OD: 3-5/8" ID: 11/16" Height: 1-3/16" Replaces Part Number(s): GY20067, GY20110, GY20629, GY22172 (1) Steel Flat Idler Pulley - GY200670, GY20110, GY20629, GY22082 5-1/4" OD Including Flanges 11/16" ID 1-3/4" Height Replaces Part Number(s): GY200670, GY20110, GY20629, GY22082 (1) Belt - GX20571, GX21833 Width: 1/2" Length: 141-1/8" Replaces Part Numbers: GX20571-SHORT, GX21833-SHORT Replaces Part Number(s): GX10168 (4) Deck Wheel - GX10168 Center Hole (Bore): 5/8" Hub: 1-3/4" Offset Tread: Smooth Bearing Type: None Wheel Size: 5" x 2" (1.785" Wide) Material: Plastic Wheel Color: Black (12) Thread Cutting Bolt - GX22456 5/16"-18 3/4" Long Replaces Part Numbers: GX20234, GX22456
