BPS3035147006 U9.135.800.10 Gear Box fits Bush Hog Rotary Cutter RZ160
BPS3035147006 U9.135.800.10 Gear Box fits Bush Hog Rotary Cutter RZ160
Regular price
$468.20 USD
Regular price
Sale price
$468.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

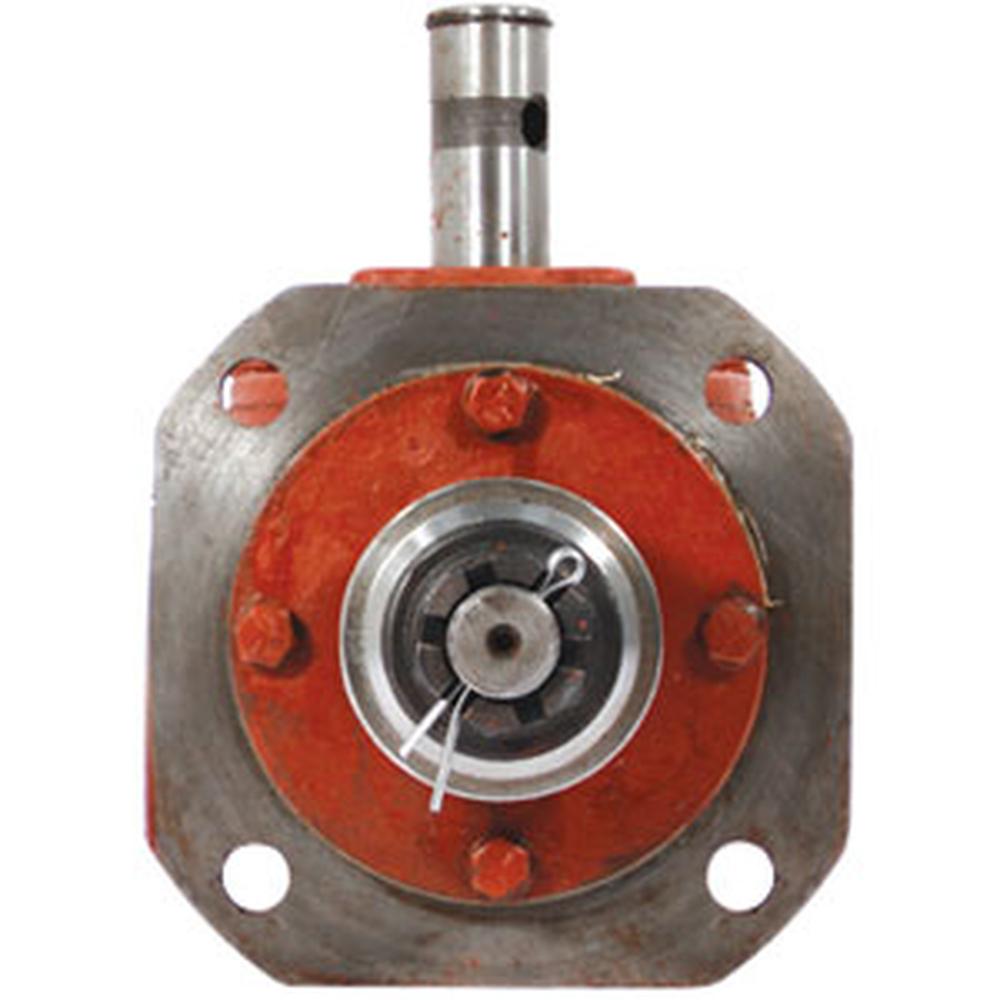

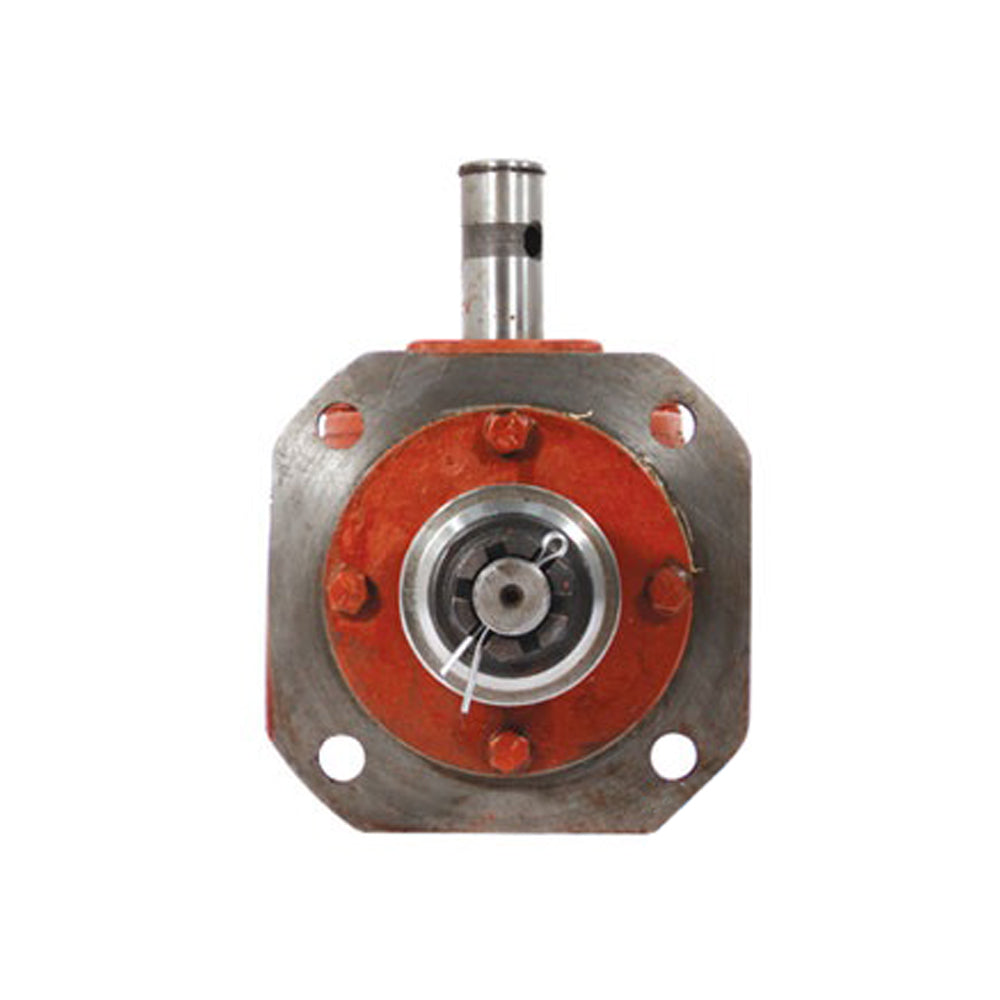

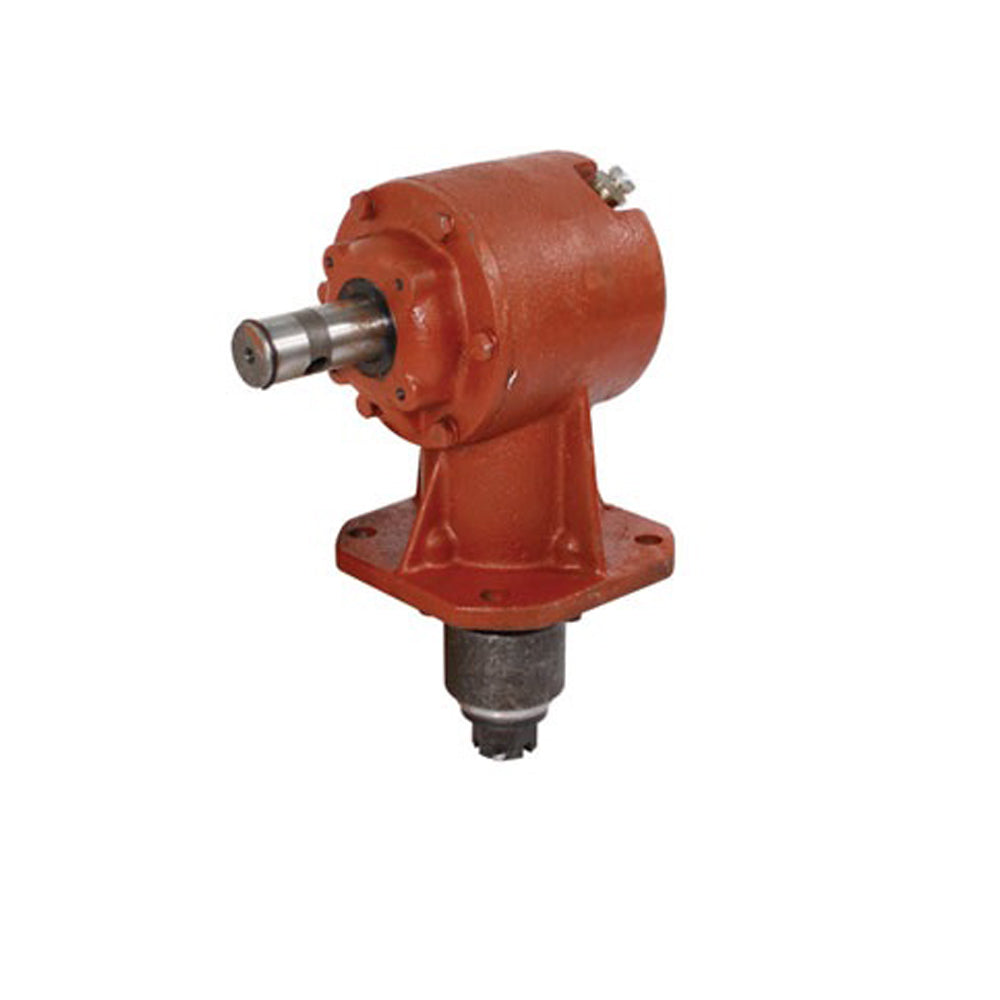

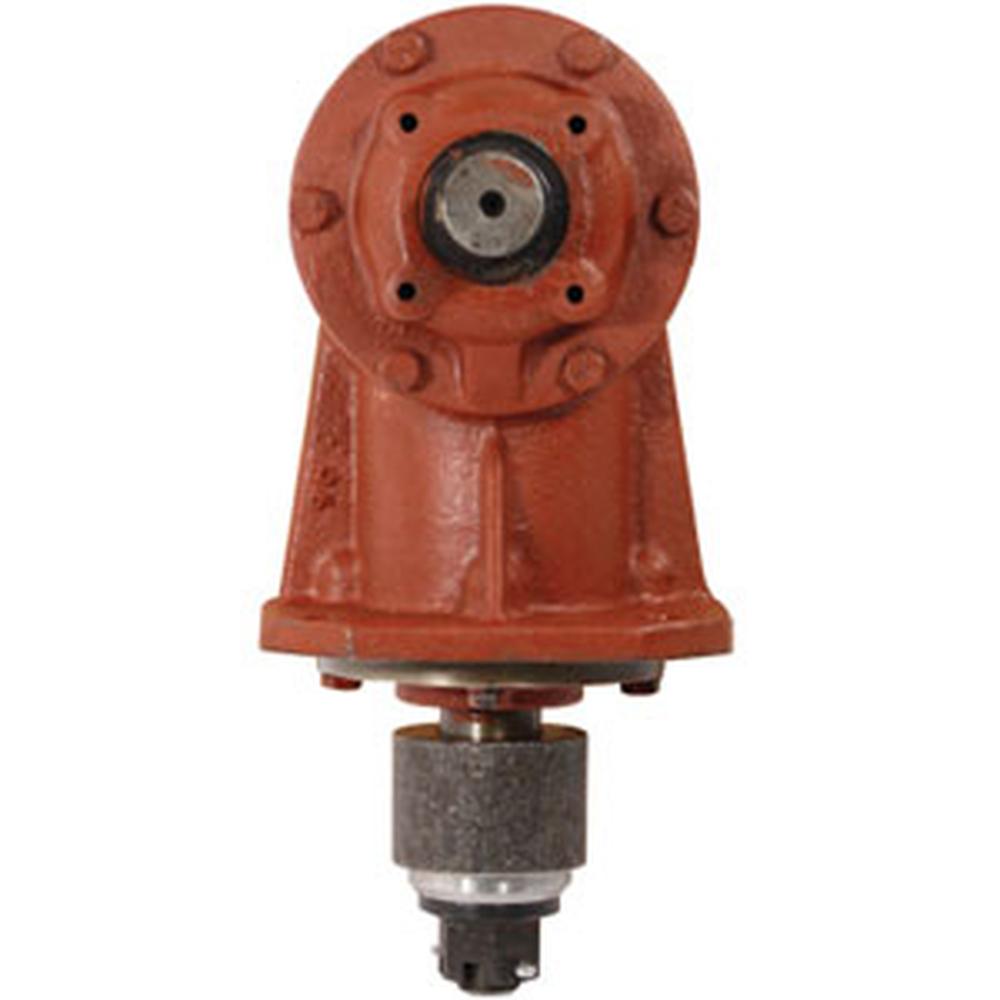

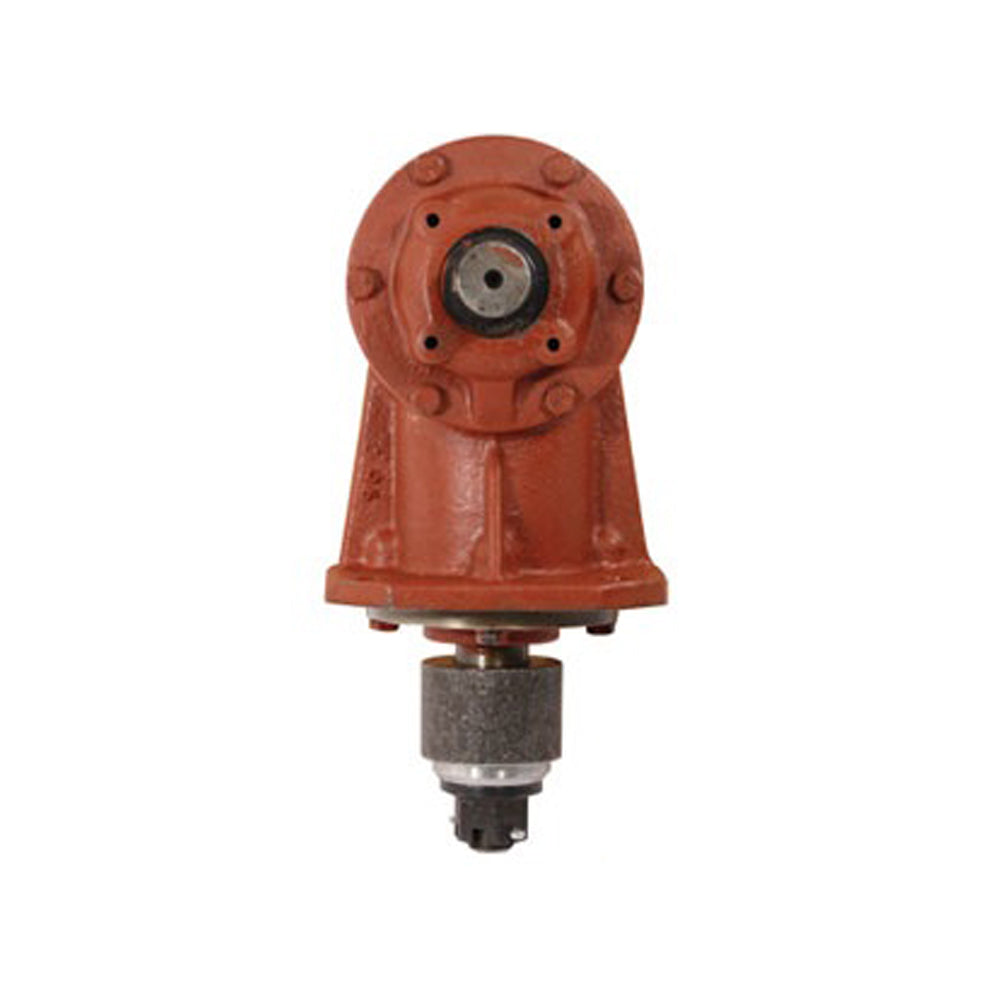

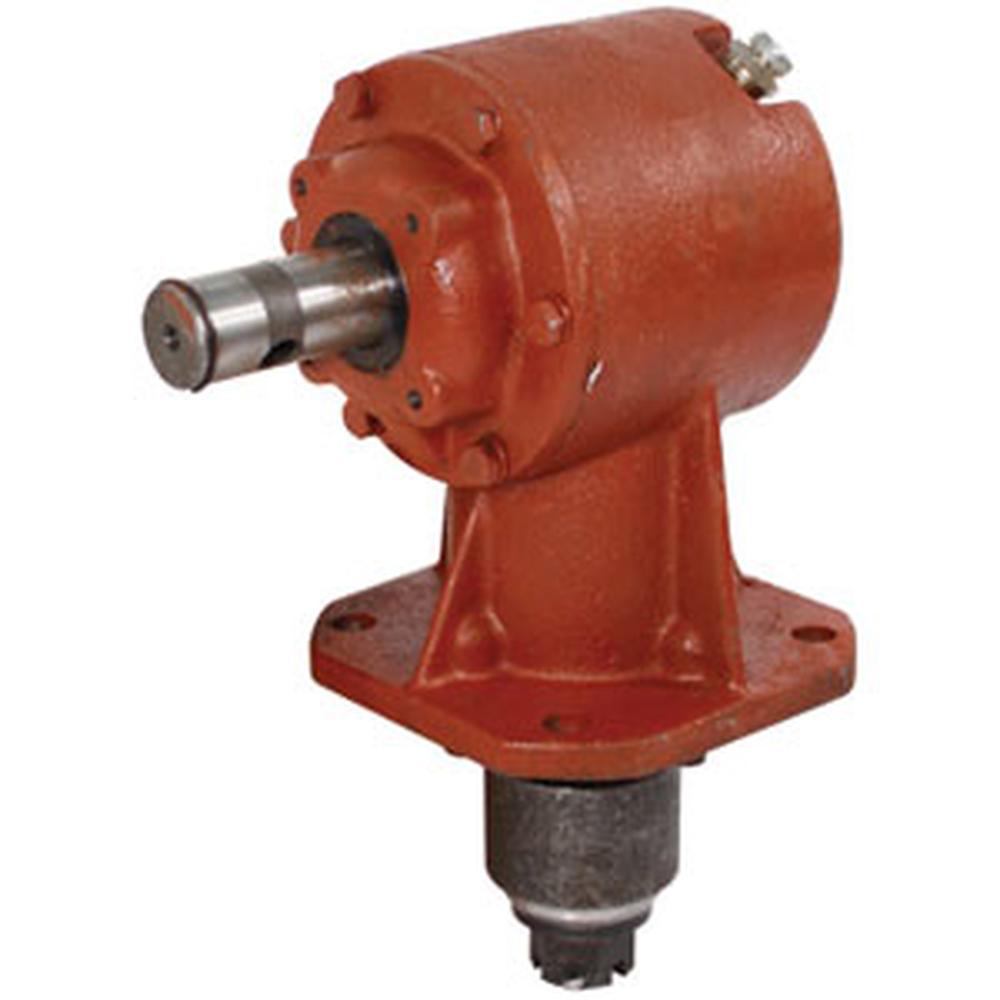

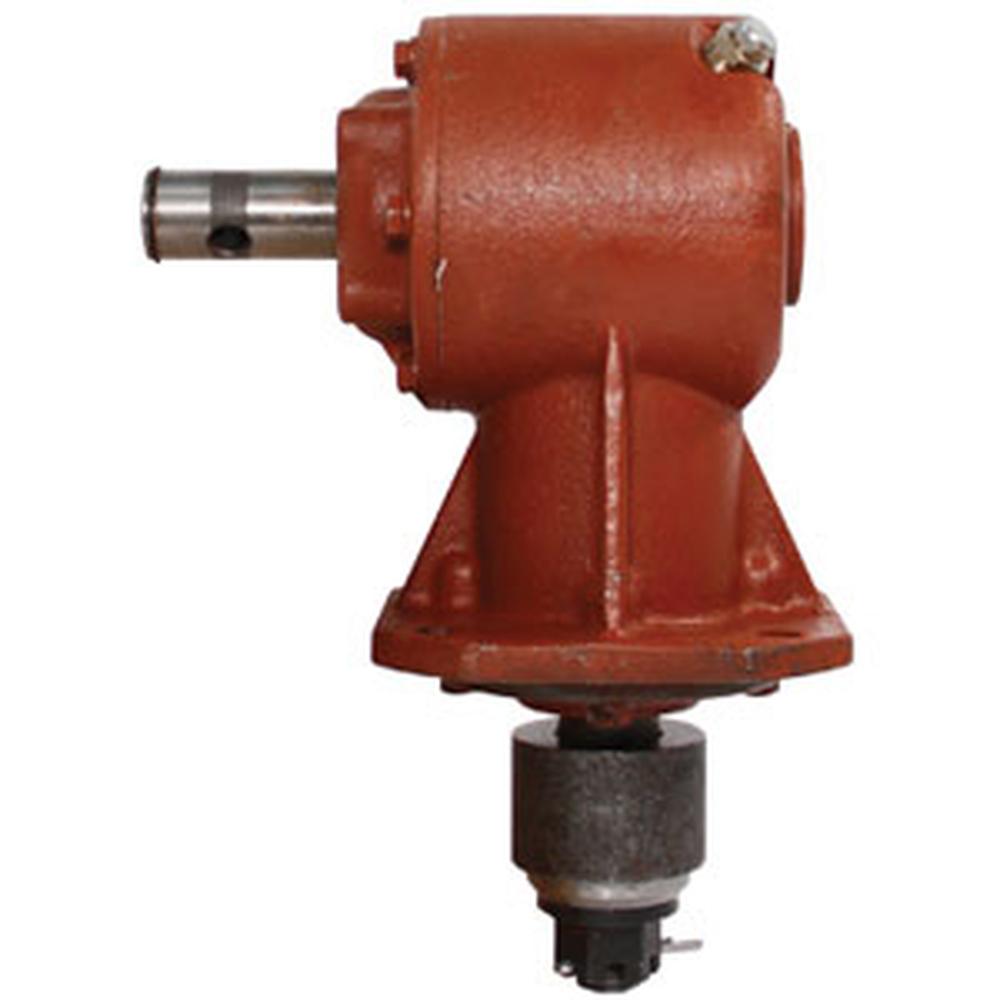

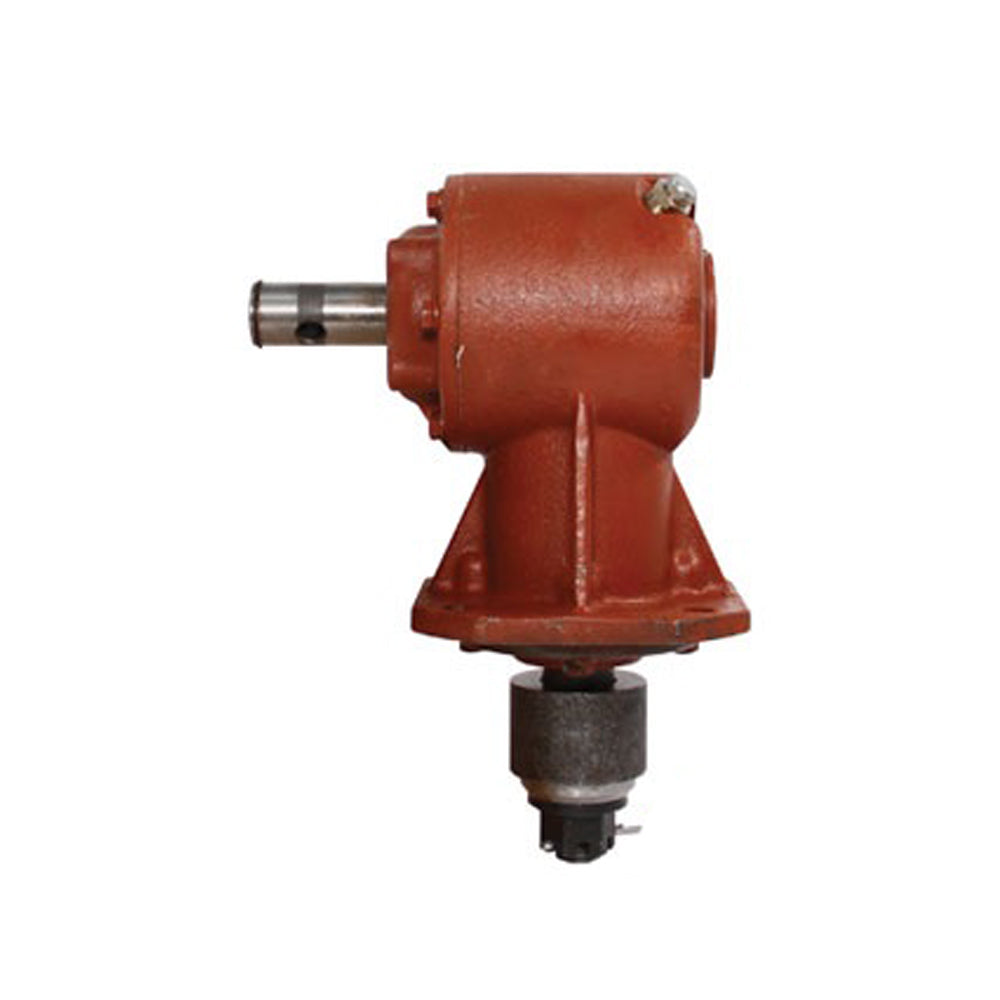

One New Aftermarket Replacement Gear Box
Fits Bush Hog Rotary Cutter Models:
RZ160, RZ60

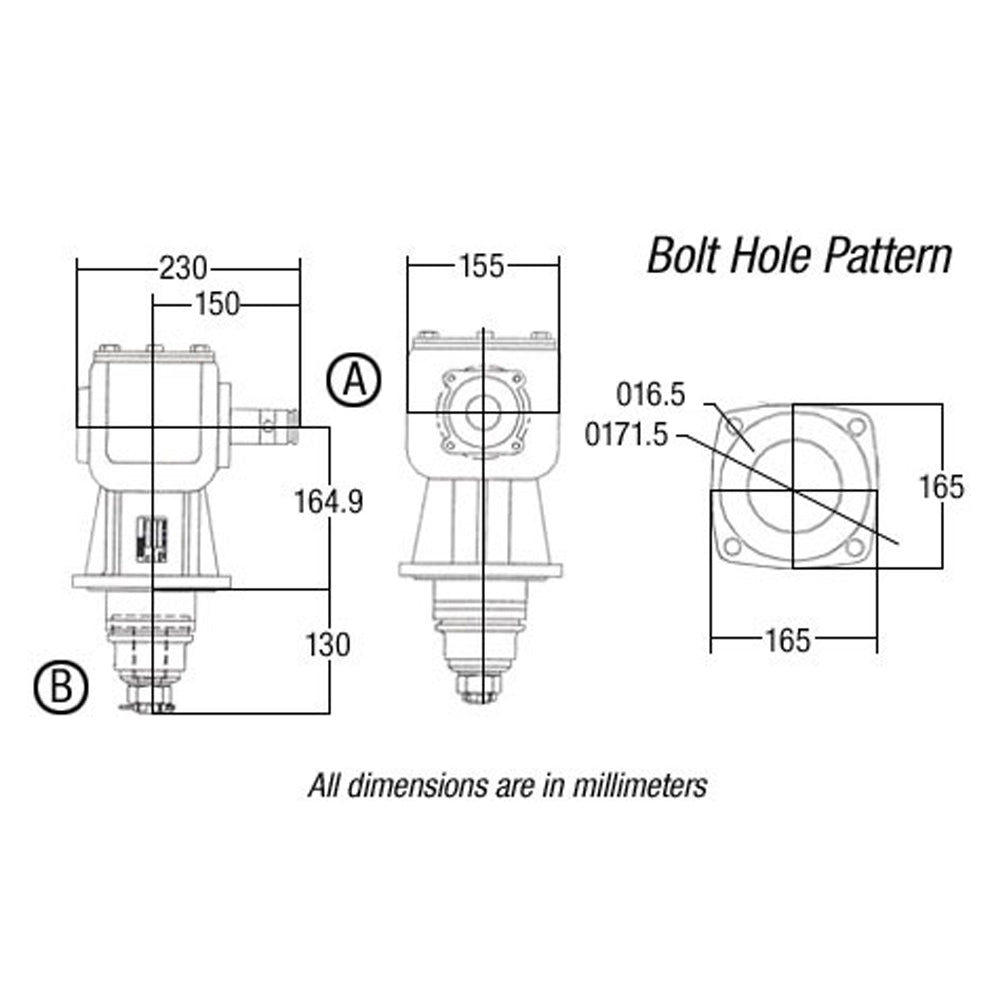

Please NOTE: The gearbox ratio is 1:1.47. The input shaft is 1-3/8" round bore. The 12 spline output shaft has tapered splines, 40 mm spline and nut is 8.2.2.00515. The mounting pattern is 171.5 mm. The gearbox is rated at 40 hp at 540 rpm and has a CCW (Counter clockwise) rotation. Replaces Comer No. U920580000. Fits various Rotary Cutters.
Tech Info:
Horse Power: 40
Input: 540 RPM
Input Shaft (A): 1 3/8" round bore
Output Shaft (B): 12 spline
Ratio: 1 : 1.47
Rotation: CCW
Replaces Part Number(s):
BPS3035147006, U9.135.800.10, U9.205.800.00
Fits Bush Hog Rotary Cutter Models:
RZ160, RZ60
Please NOTE: The gearbox ratio is 1:1.47. The input shaft is 1-3/8" round bore. The 12 spline output shaft has tapered splines, 40 mm spline and nut is 8.2.2.00515. The mounting pattern is 171.5 mm. The gearbox is rated at 40 hp at 540 rpm and has a CCW (Counter clockwise) rotation. Replaces Comer No. U920580000. Fits various Rotary Cutters.
Tech Info:
Horse Power: 40
Input: 540 RPM
Input Shaft (A): 1 3/8" round bore
Output Shaft (B): 12 spline
Ratio: 1 : 1.47
Rotation: CCW
Replaces Part Number(s):
BPS3035147006, U9.135.800.10, U9.205.800.00
Models This Part Fits:
RZ160, RZ60Reference Numbers:
101ST, 101ST-A, 45PRC30147-N, 81444, 81444-A, 826-, 826-384C, 826-384C-A, 9.119.000.20, A-U920580000, A-U920580000-A, BPS3035147006, U9.135.800.10, U9.135.800.10-A, U9.205.800.00, U920580000, U920580000-AProduct Category:
AgricultureView More: Agriculture Replacement Parts
